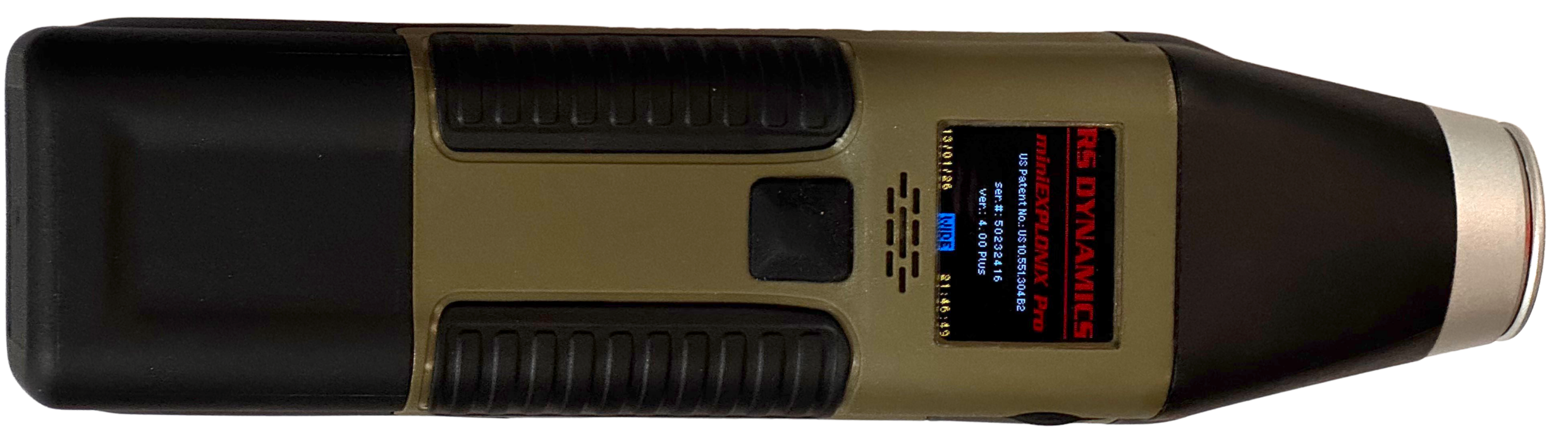

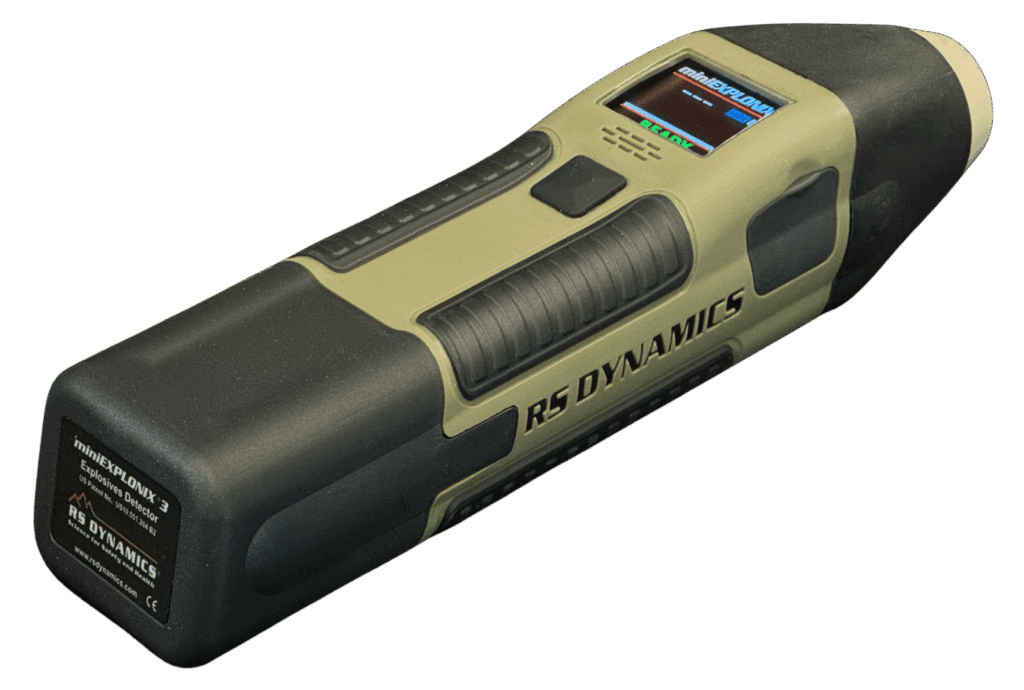

Portable Explosive Trace Detector (ETD)
miniEXPLONIX
Detect Trace Explosives in Seconds — Anywhere
miniEXPLONIX is a next-generation portable explosive trace detector (ETD) designed for rapid and highly sensitive detection of explosives such as TATP, RDX, PETN, and TNT. Built for field use, it enables security professionals to identify trace amounts of hazardous substances within seconds.
Unlike bulky laboratory systems, it is designed for deployment in the field and rapid screening. This makes it ideal for real-world security environments where speed and accuracy are critical.
Whether deployed at airports, border checkpoints, or military operations, miniEXPLONIX delivers fast, reliable, and lab-level detection performance in a compact handheld device.
miniEXPLONIX Key Features
- Outstanding Startup Time
- Ultra-Fast Detection
- High Sensitivity
- Low False Alarm Rate
- Extremely resistant to interfering chemicals
- Exceptional resistance to contamination
- Portable & Lightweight
- Easy-to-Use, One-button Operation
- Remote control
- Remote factory checking
See miniEXPLONIX in operation
First responders must rapidly and accurately identify potential threats to ensure public safety, minimize risks, and enhance emergency response operations. The miniEXPLONIX is a leading solution for explosive detection in the field, outperforming traditional ion mobility spectrometry (IMS) devices by delivering fast, compact and highly reliable threat detection in real-world security screening environments outside the laboratory.
Portable ETD with One-button Easy Operation
The miniEXPLONIX explosive trace detector is ready for operation within just 15 seconds from a cold start.
With a simple second button press, measurement begins instantly—no cleaning cycle required.
With the broadely used USB 2.0 standard you are able to connect to “miniEXPLONIX view” PC app, allowing you configuration change, measurements download as well as remote control. Wireless, if needed!
Where innovation meets use
The miniEXPLONIX is a compact, highly reliable trace detector for military and defense operations, enabling rapid identification of explosives and hazardous substances directly in the field.
Its portable, low-power design makes it ideal for tactical deployment, border protection, and counter-terrorism operations.
The miniEXPLONIX is an advanced trace detector for ports, border control, and customs, enabling rapid detection of explosives and hazardous substances smuggled in cargo, vehicles, and personal belongings.
Its portable design supports use in seaports, airports, and land borders, enhancing inspection efficiency, reducing screening time, and helping maintain secure borders.
The miniEXPLONIX is a trace detection solution for urban security, enabling quick identification of explosives and hazardous substances in crowded, high-risk public places.
It is ready for deployment at public events, transportation hubs, airports, and critical infrastructure. The miniEXPLONIX delivers fast, effective response to threats, being able to measure continuously 24/7.
The miniEXPLONIX is a reliable explosives trace detector for governmental agencies, enabling fast and accurate detection of explosives and hazardous substances in high-risk and high-traffic environments.
Designed for easy deployment, it supports security operations at airports, border crossings, customs inspections, and public events, enhancing threat detection while ensuring efficient operations.
Be prepared. Anytime

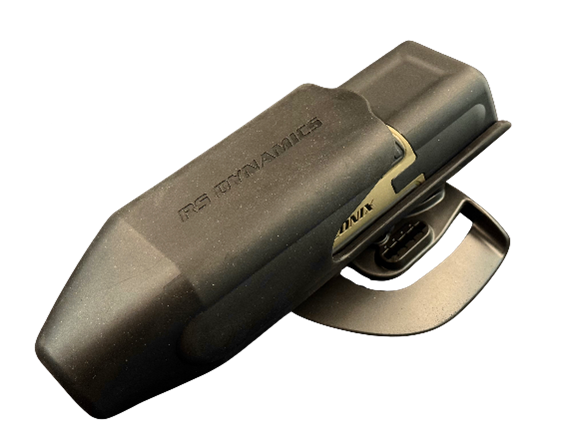

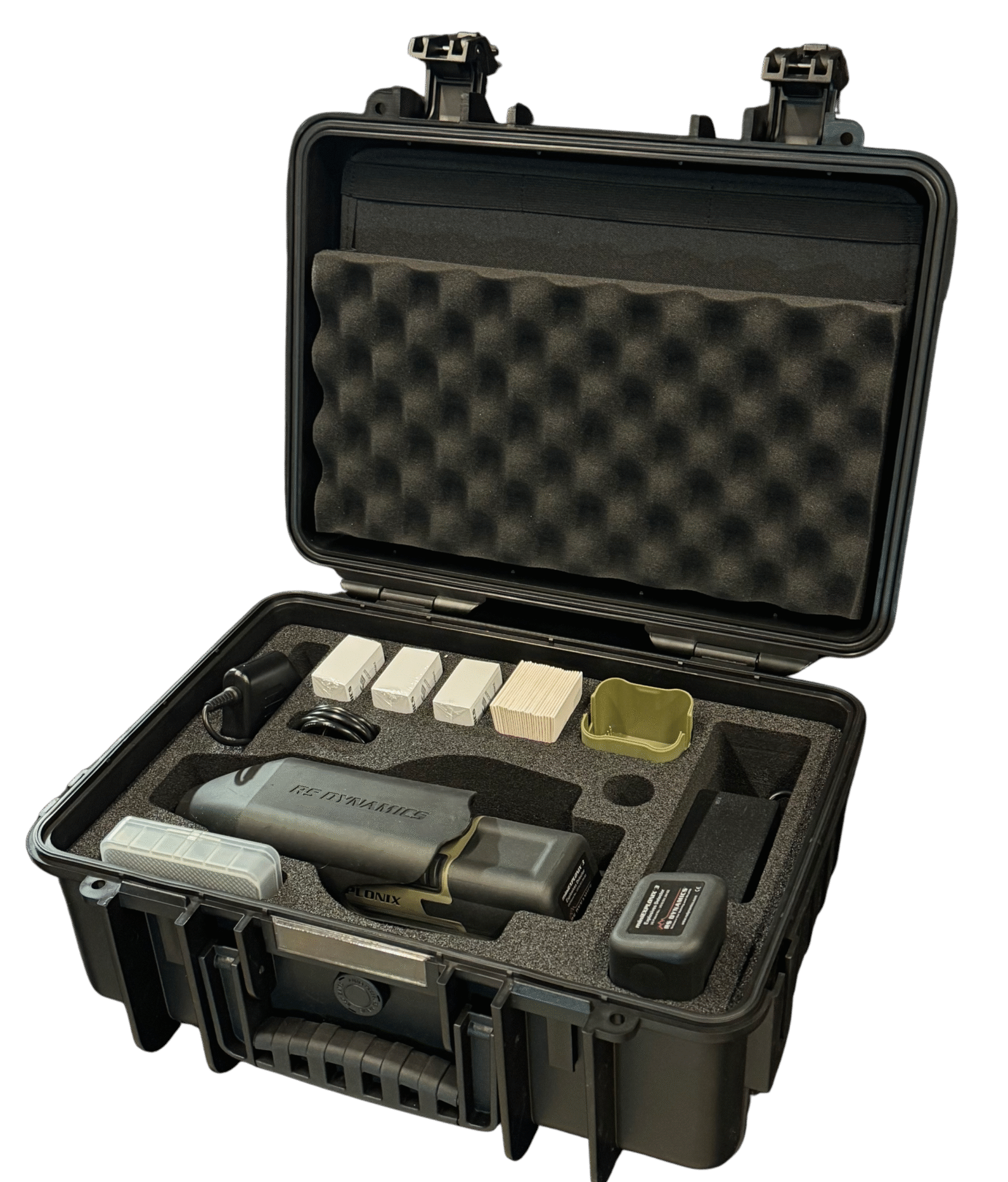

The miniExplonix is ready to action delivered with heavy duty sealed transport case. The holster with Tek-Mount (Quick Connect Mounting System) allows you the miniExponix have at your hand immediately.
Flexible Power Configurations for Every Mission
The miniEXPLONIX explosives trace detector combines simplicity of use with mission-critical, uninterrupted 24/7 operation.
Batteries can be swapped instantly, charged in an external station, or the device can be powered and recharged directly via AC or 12/24V vehicle adapters—even during operation.
Specification
General overview
Detection principle
Infra Red Sampled Selective Luminescence (IRSSIL)
Sampling procedure
Particulate sampling using paper strip swabbing or Vapor sampling directly sniffing vapors
Sample type
Explosive traces or vapors
Detected items
All-known explosives including “home mades”
False alarm rate
Excellentely low, extremely high resistance to interfering chemicals and organic compounds, parfumes, etc.
Operational modes
“Wide range” for common explosives (incl. TATP), “Advanced” for the highest sensitivity of military explosives and “TATP” for enhanced sensitivity of TATP and home mades
Control
One button control. The first press to turn-on the device, the second press for the scan start. The long press for turning-off the measurement
Features
Start-up time
Cold start typically within 5 to 15 seconds ( no cleaning cycle or bake-out needed )
Detection time
About 1 second
Alarm
Acoustic and red-flashing visual alarm
Interface
1.6″ colorful OLED display, one heavy-duty button operable in gloves
Connectivity
USB 2.0, Wi-Fi optional
User setting
Configurable from PC
Remote control
Available, support for robot application
Physical
Size
249 x 65 x 55 mm
Weight
685 g ( together with battery pack )
Power Supply
Battery
Weight
Consumables
Detectior cartridge
one enough for 6 000 – 10 000 scans
Sampling strips
Battery charger operable from 100 to 250V included, external charger or car charger optional
Support
Training
No special operator’s training or qualification needed
Factory check & calibration
Available through any internet connection
Outdoor
Operating temperature range
-15 to 54 °C
Environmental
Radioactive or toxic materials inside
None
Toxic materials inside
None (excluding batteries and detection cartridges)
Recyclability
Fully at manufacturer side
