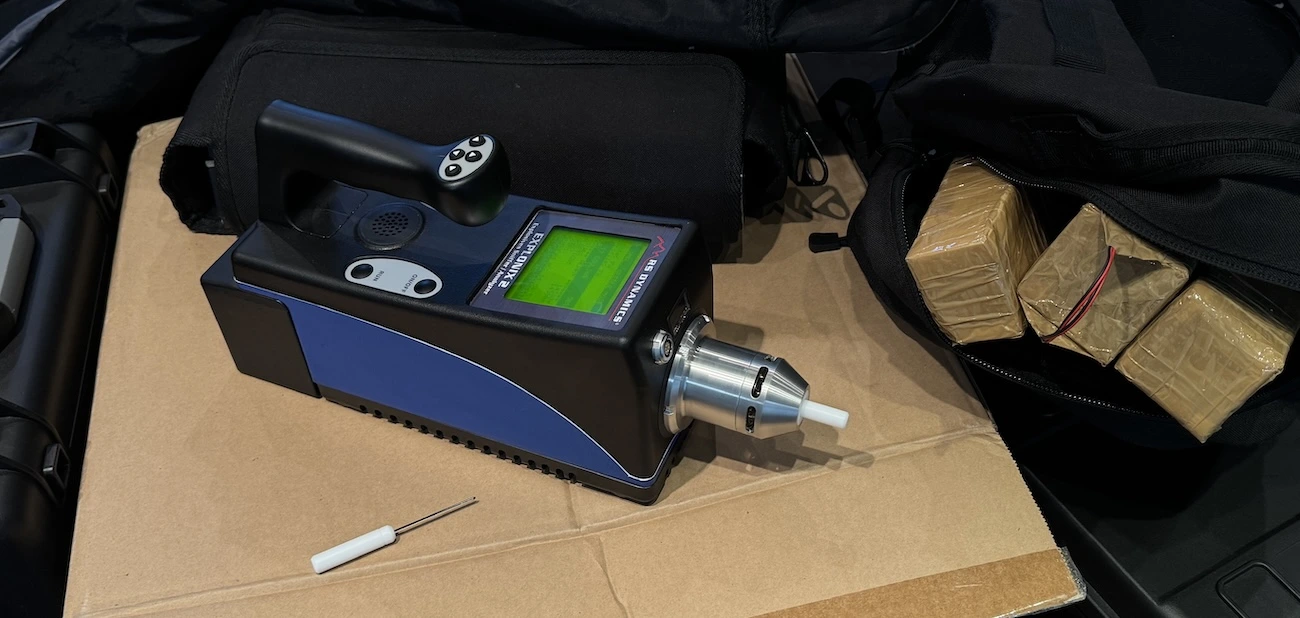

EXPLONIX

The EXPLONIX uses the unique IRSSIL-I technology for both fast and precise detection and the identification of explosives traces, gunshot residuals and radioactive contrabands in a wide field of operations. Its detection and identification capability covers a wide range of explosives, including homemade explosives as well as non-tagged explosives, gunshot residuals and radioactive contrabands from military and industrial sources.The EXPLONIX is a highly sensitive, portable, multi-functional explosives/radiological compounds detection and analytical system offering optimal power & flexibility for fast, reliable detection and identification of a wide range of explosive and radioactive material traces.

Product brochure
Request a demo

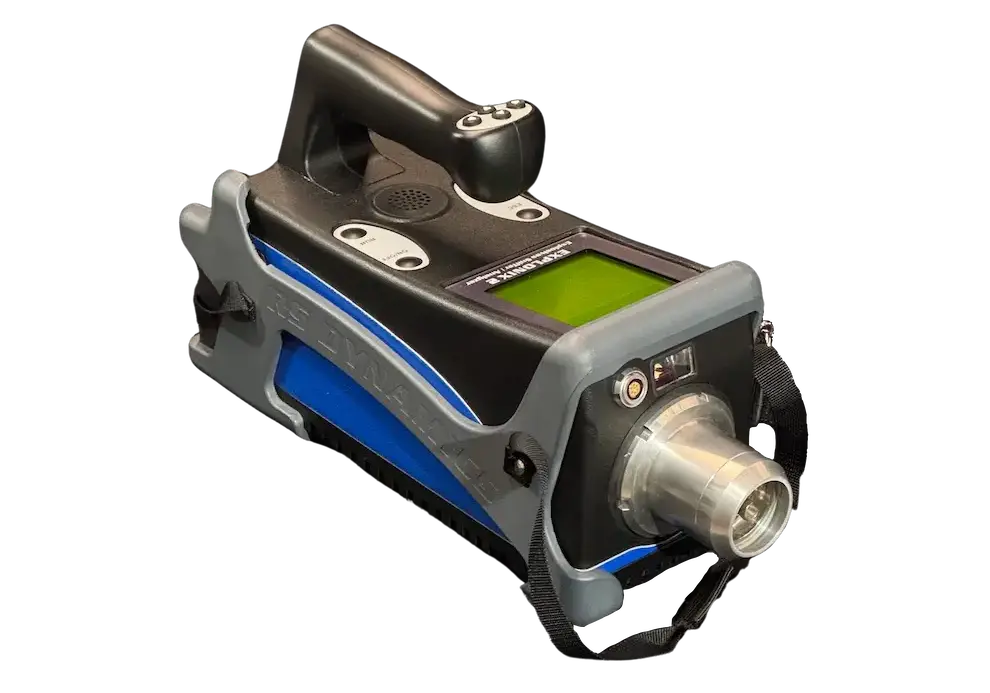

Featured

Detects and identifies all explosives ( incl.TATP )
Excellent sensitivity and outstanding robustness
Extremely resistant to interfering agents
Detects gun shot residua
Detects radiation and identifies kind of its source ( optional )
Rapid start-up and scan times

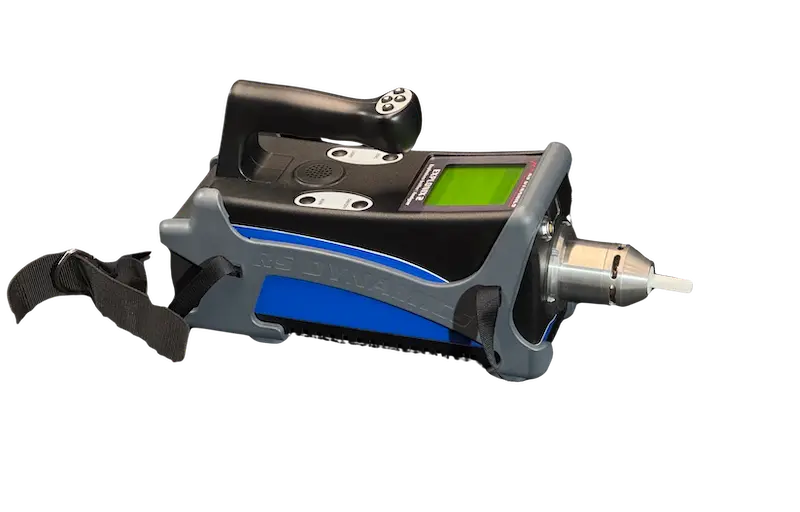

Discover the EXPLONIX

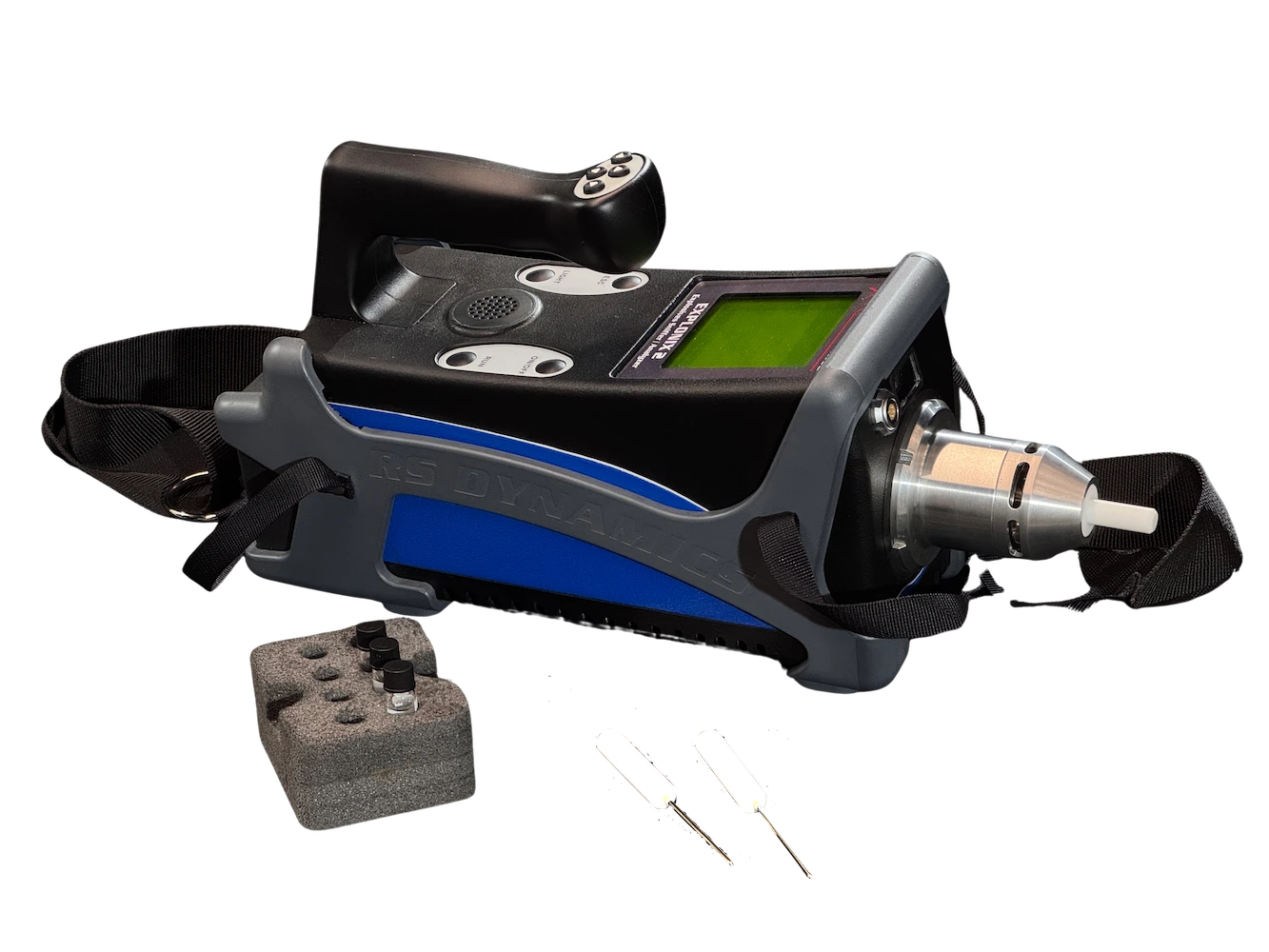

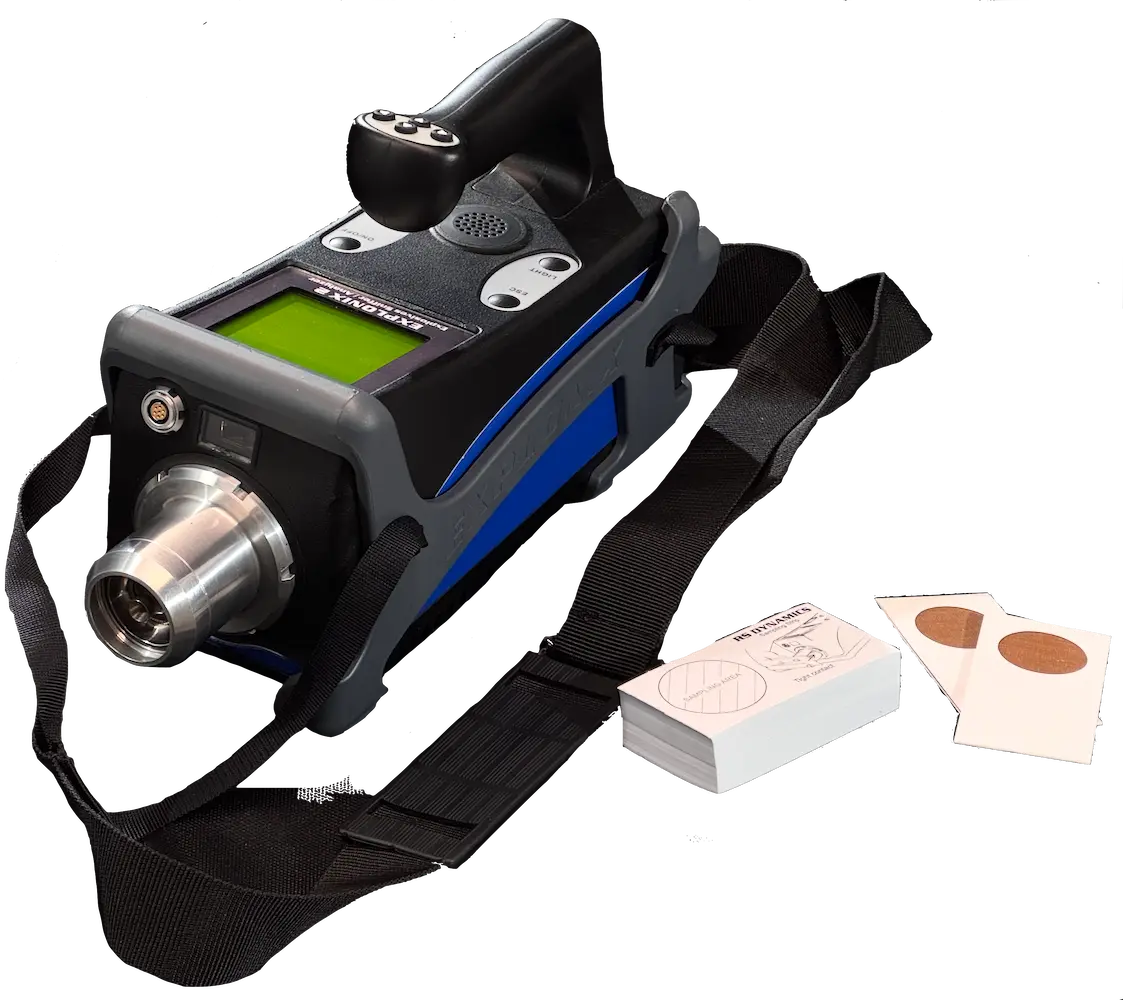

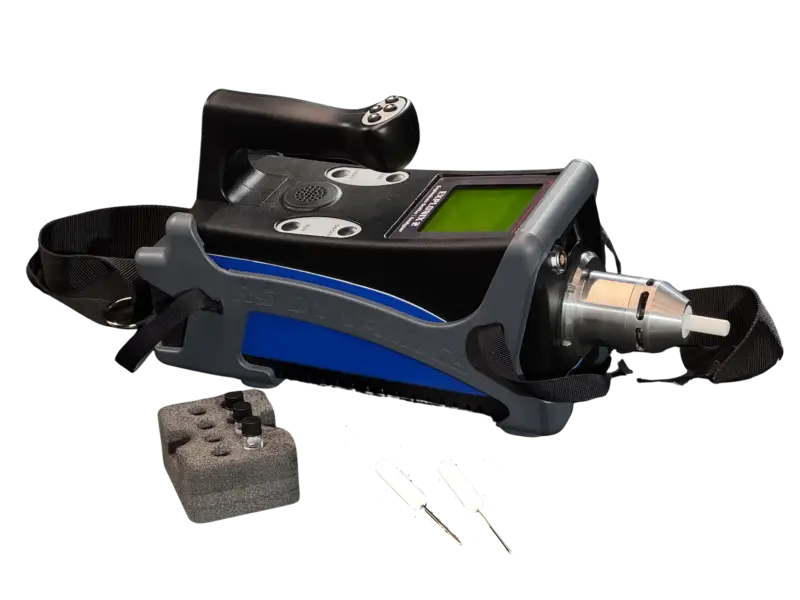

Find every trace

The EXPLONIX delivers to the user the capability to find the invisible amount of explosive,
that can reveal a bomb smuggler or terrorist. There are several adapters dedicated to maximize
the performance.

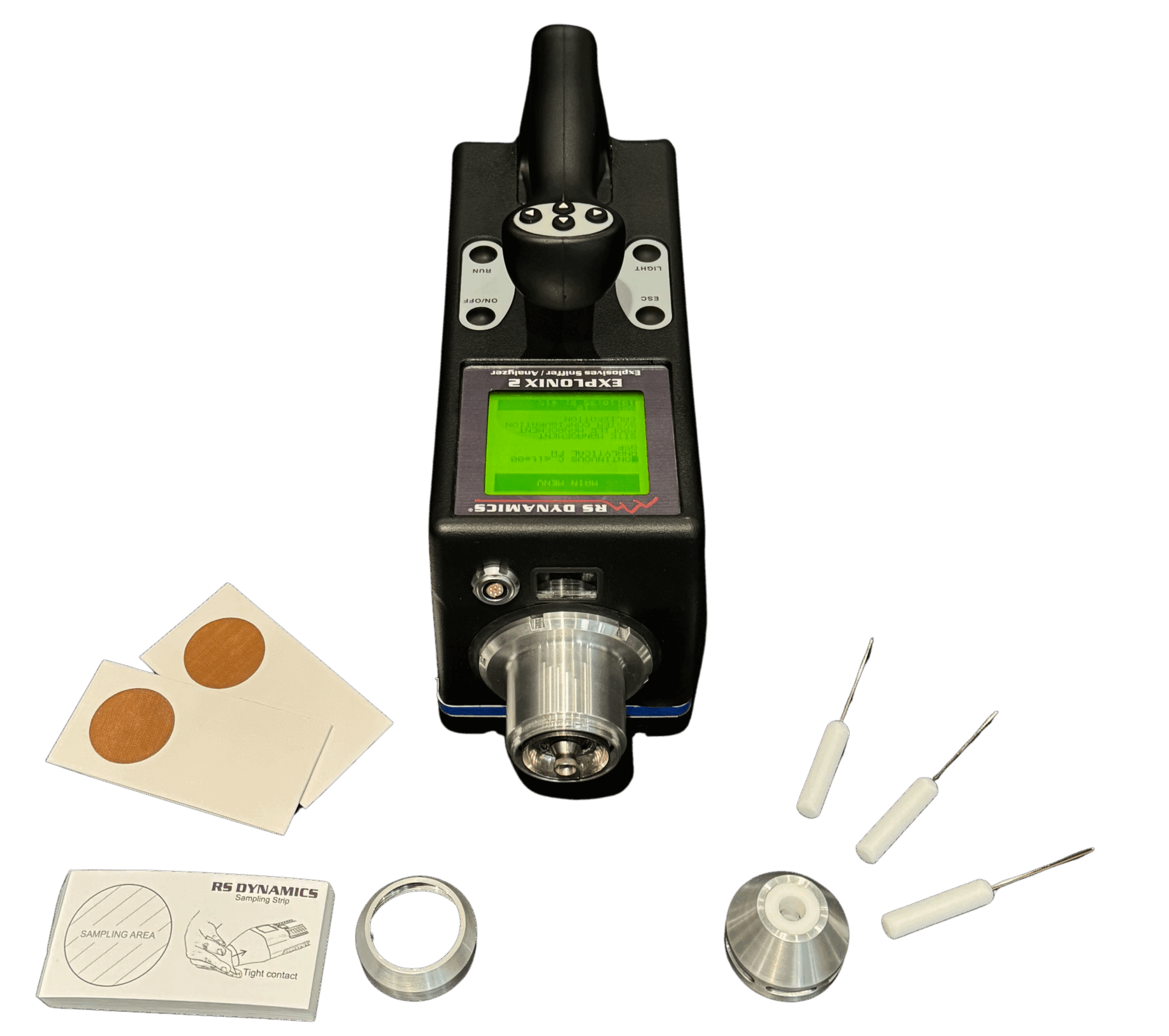

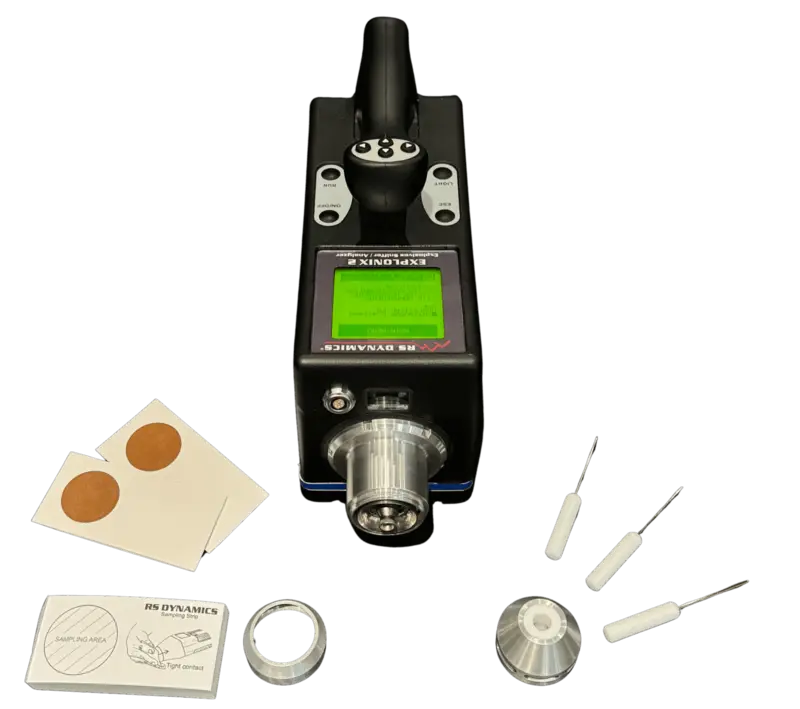

Collecting 1

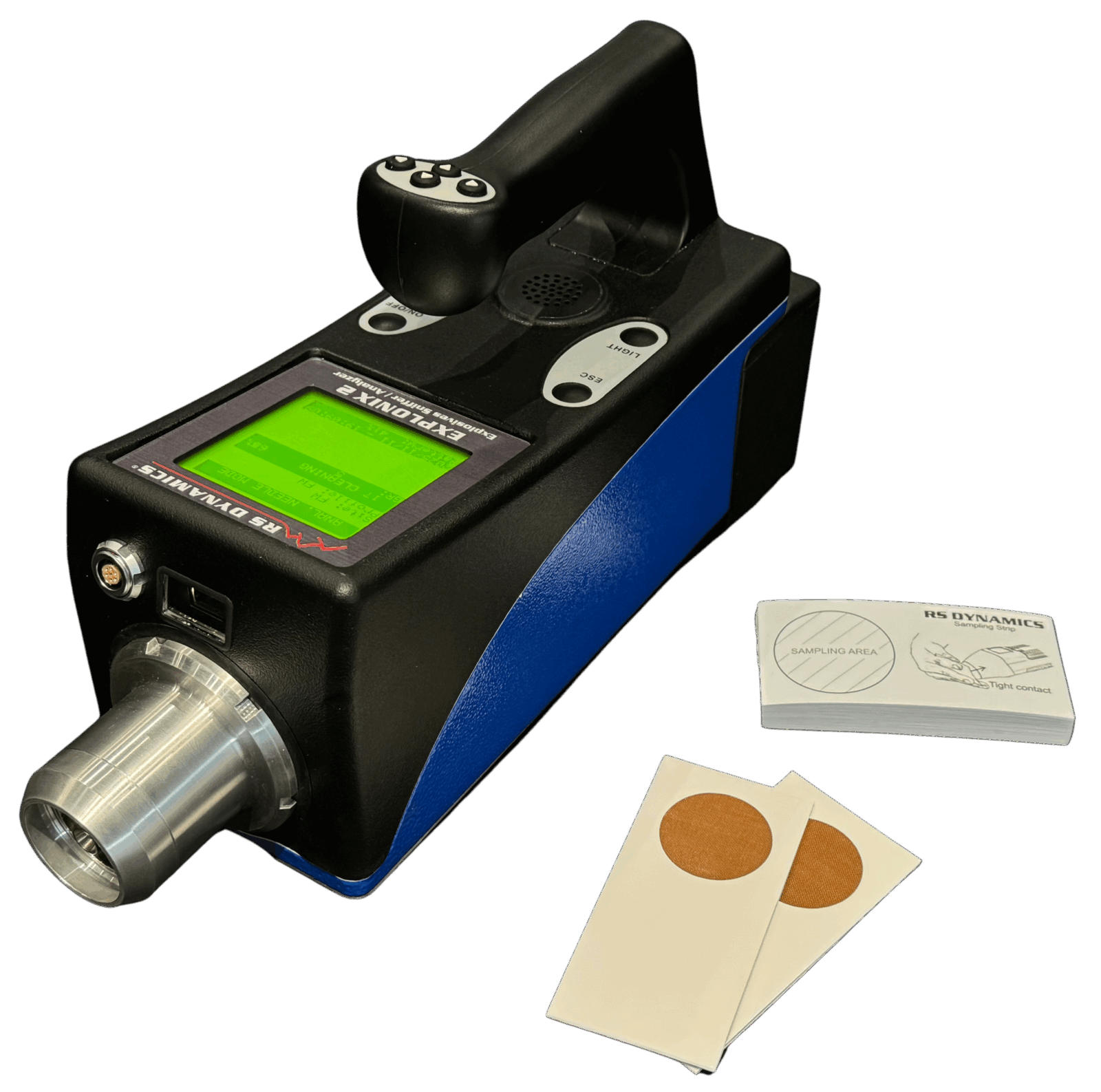

Collecting 2

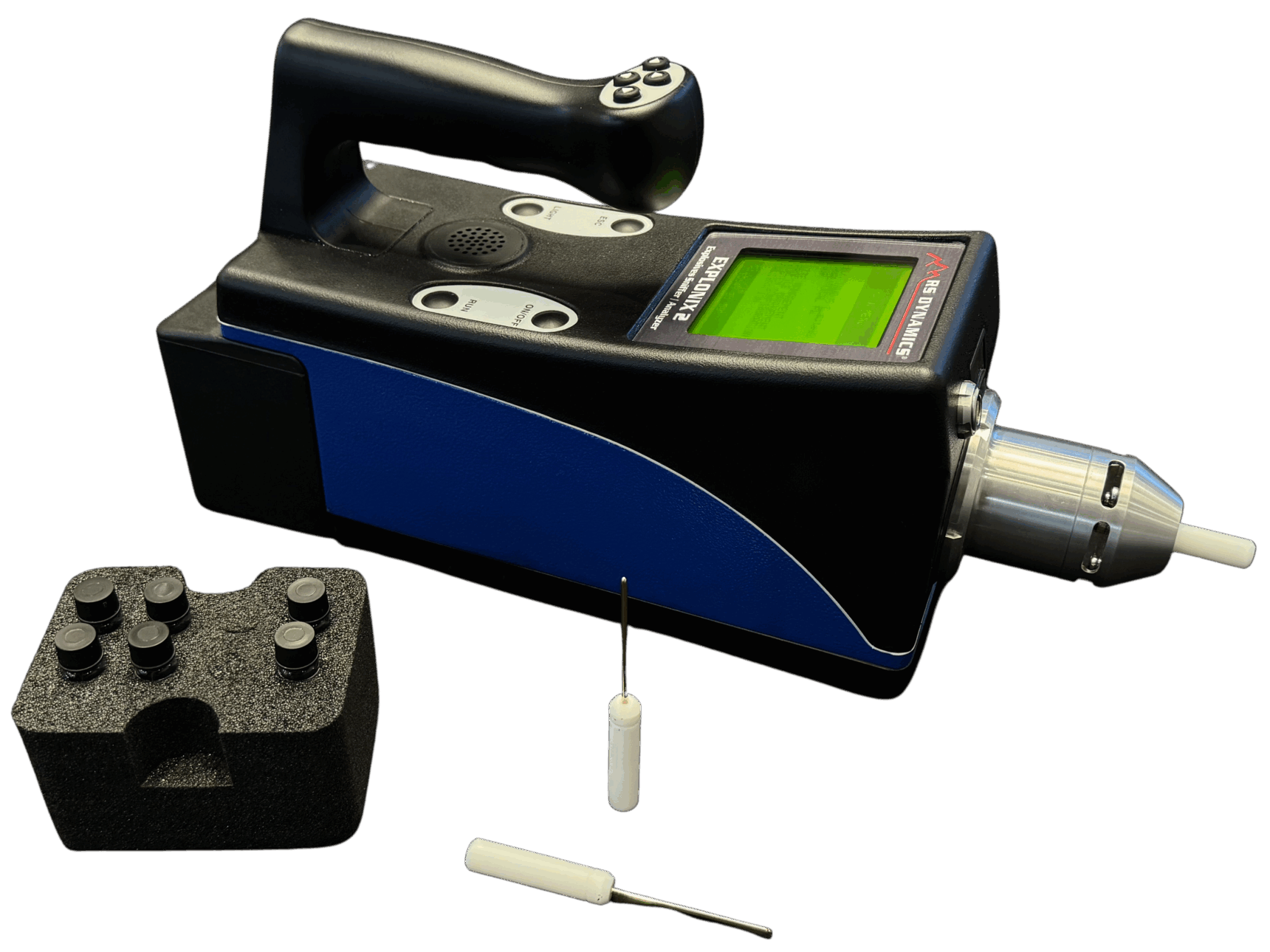

Collecting 3
View Tech

Reveal the Gamma-Ray radiation

Your EXPLONIX could be equipped with an gamma-ray radiation spectrometer as an option. With this enhancement, you can turn-on the Geiger counter, that will alert you to radioactivity. With the radio nuclide spectrometer scanning, you can identify the kind of the source.

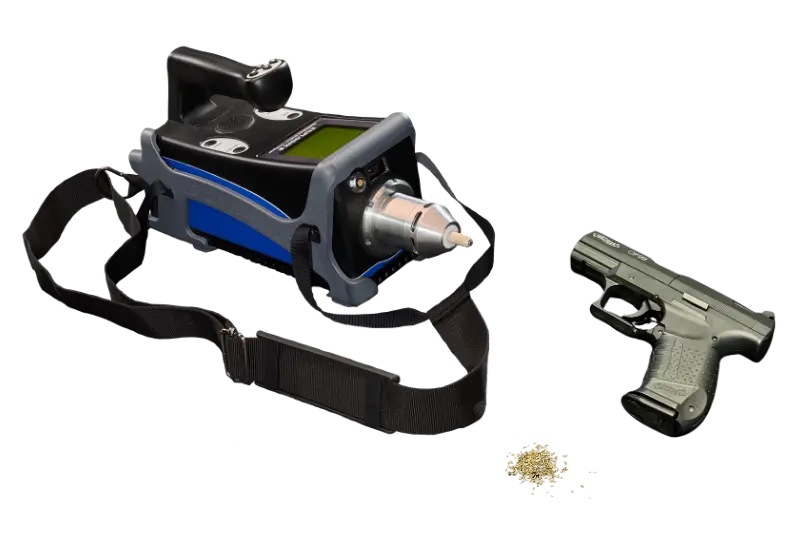

Find the gun shot residua

With the special adapter the EXPLONIX is able to sniff solid particles, released from
ammunition during gun-shooting

Where innovation meets use

Defense

Our defense solutions are designed to provide strong, reliable, and intelligent protection for your property and assets. We combine modern technology with trusted security practices to prevent risks before they happen and ensure complete peace of mind.

Learn More
Ports & Border Control

Our Ports & Border Control services ensure secure, efficient, and compliant movement of goods and people across national entry points. We focus on advanced screening, real-time monitoring, and strict regulatory enforcement to prevent illegal activities while maintaining smooth operational flow.

Learn More
Urban Security
Urban Security requires precision, preparation, and modern technology. Our services combine real-time surveillance, emergency response, and strategic patrol operations to address the unique challenges of urban areas. Whether protecting residential neighborhoods, business districts, or public gathering points.
Learn More
Governmental
Our Governmental services are designed to support public institutions with reliable, efficient, and secure solutions that enhance national stability and public trust. We work closely with government agencies to implement systems that improve safety, streamline operations,
Learn More

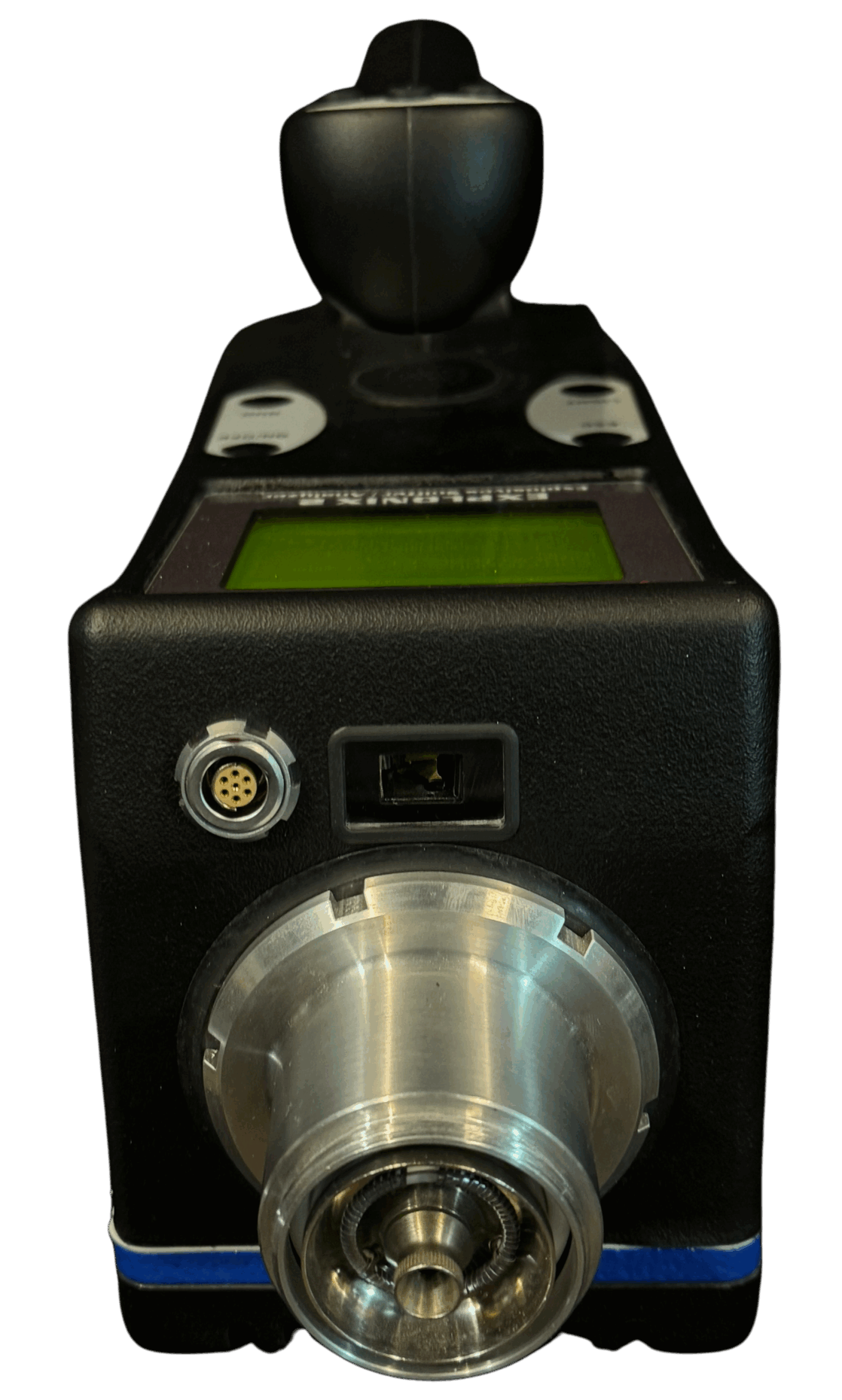

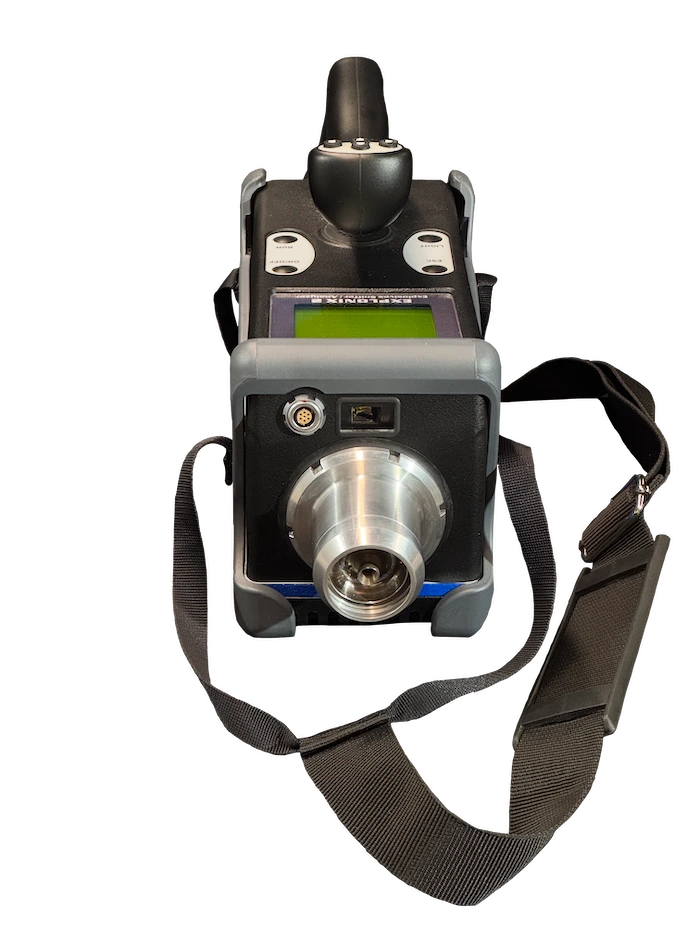

Have the evidence.

The Explonix automatically assigns the scanned BAR code to the last measurement, stored in memory”

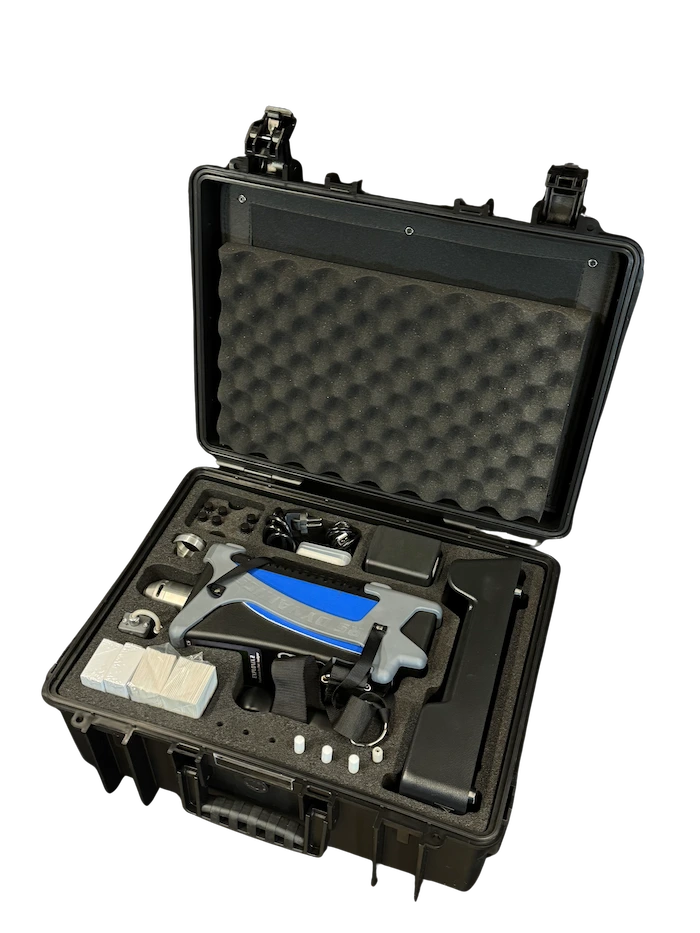

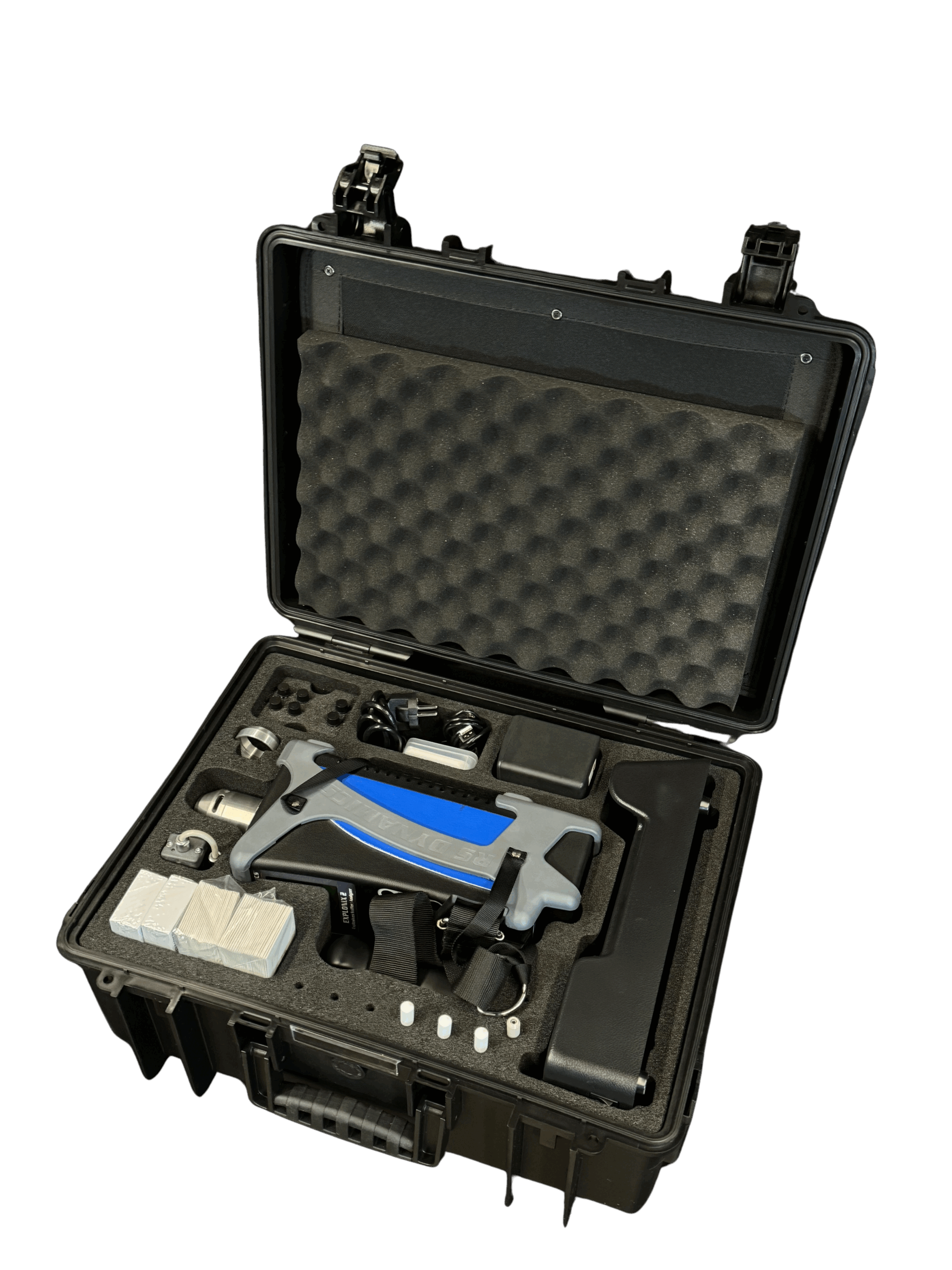

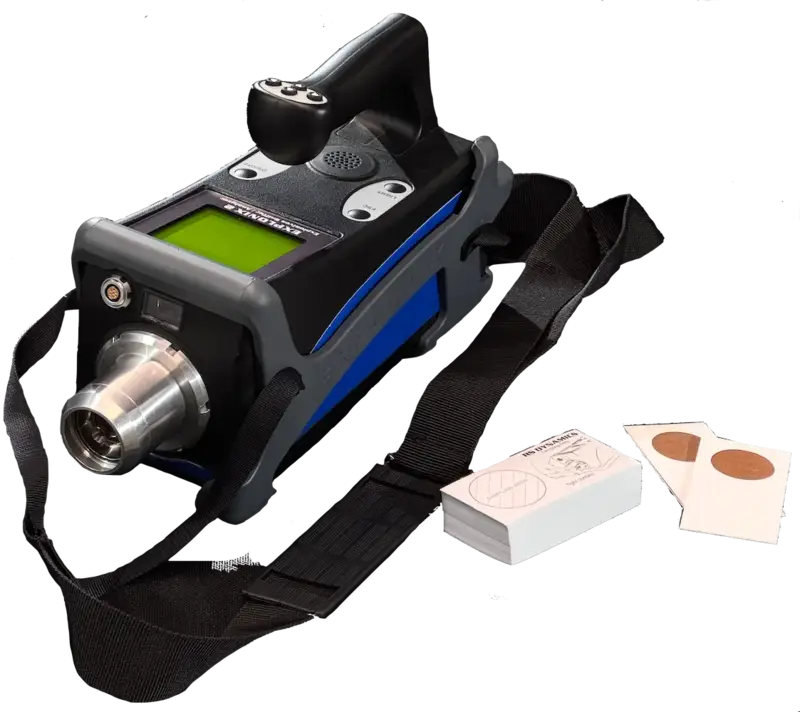

Ready for duty

The EXPLONIX is delivered in rubber holster combined shoulder strap allowing you comfortable to use the device. Our device is packed in heavy duty case all together with all the accessories dedicated for different tasks. You can find everything you need in your case ready for harsh conditions.

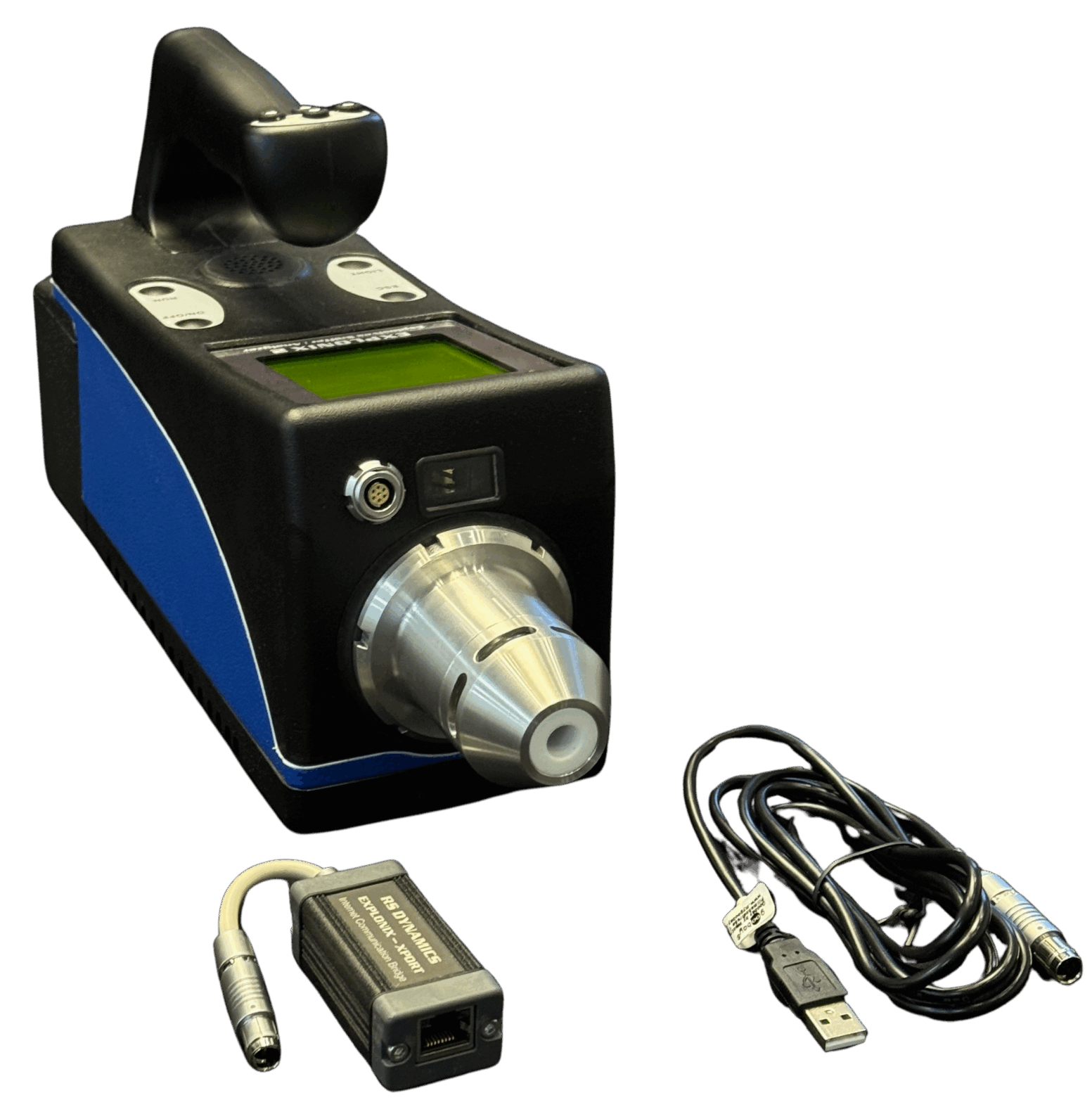

Be connected

Connect your EXPLONIX to your PC with USB cable. Or connect it to the internet via X-Port
bridge providing you ethernet connector. Or go wireless with Wi-Fi (optional).

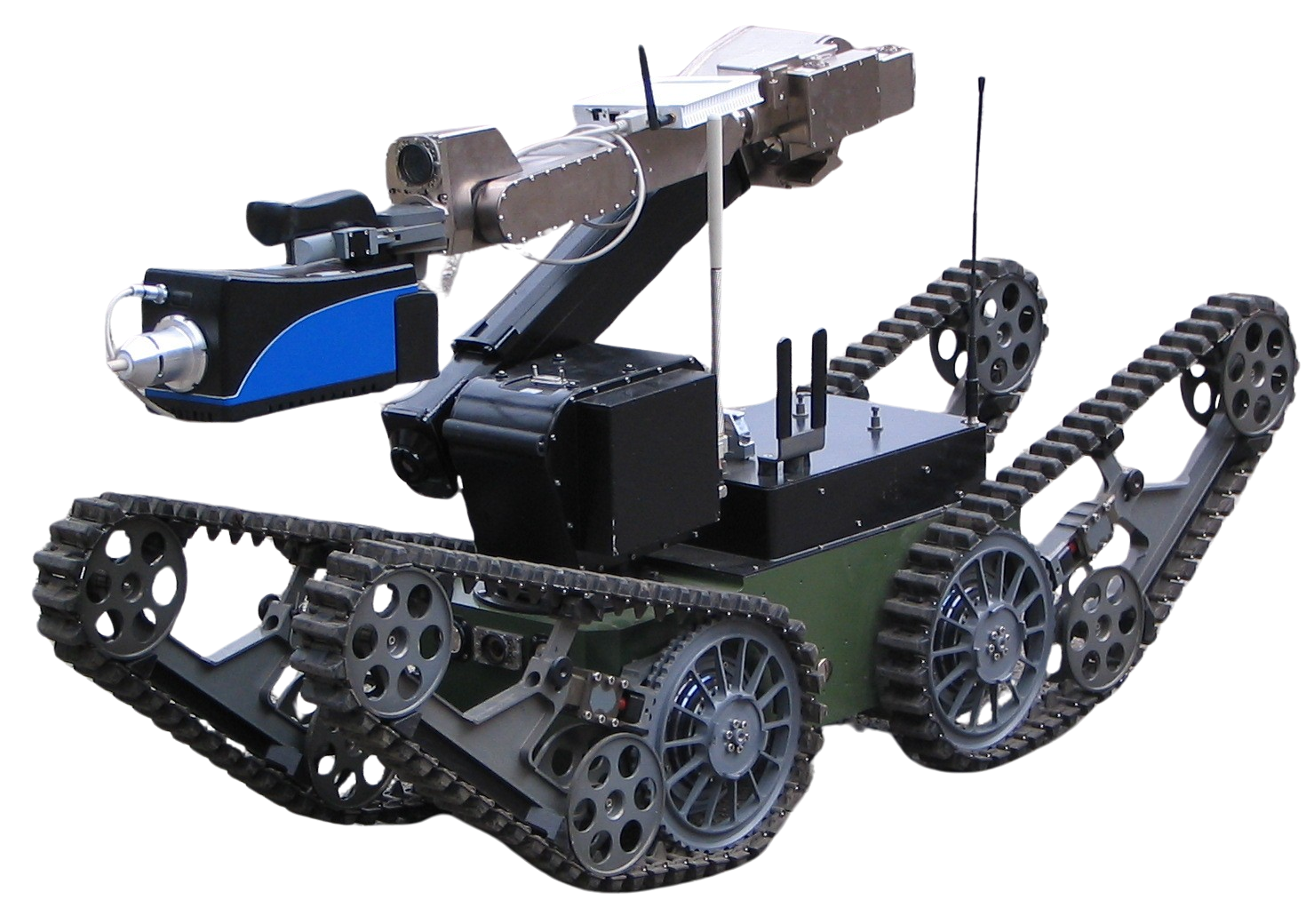

Robot-friendly device

Be safe thank to remote control. Mount the Explonix on robot arm, run the remote control
PC application, connect the device via cable or Wi-Fi and launch the trace detection.

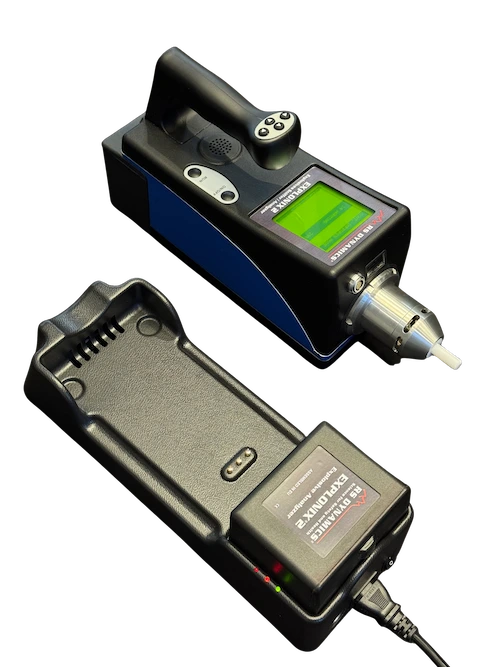

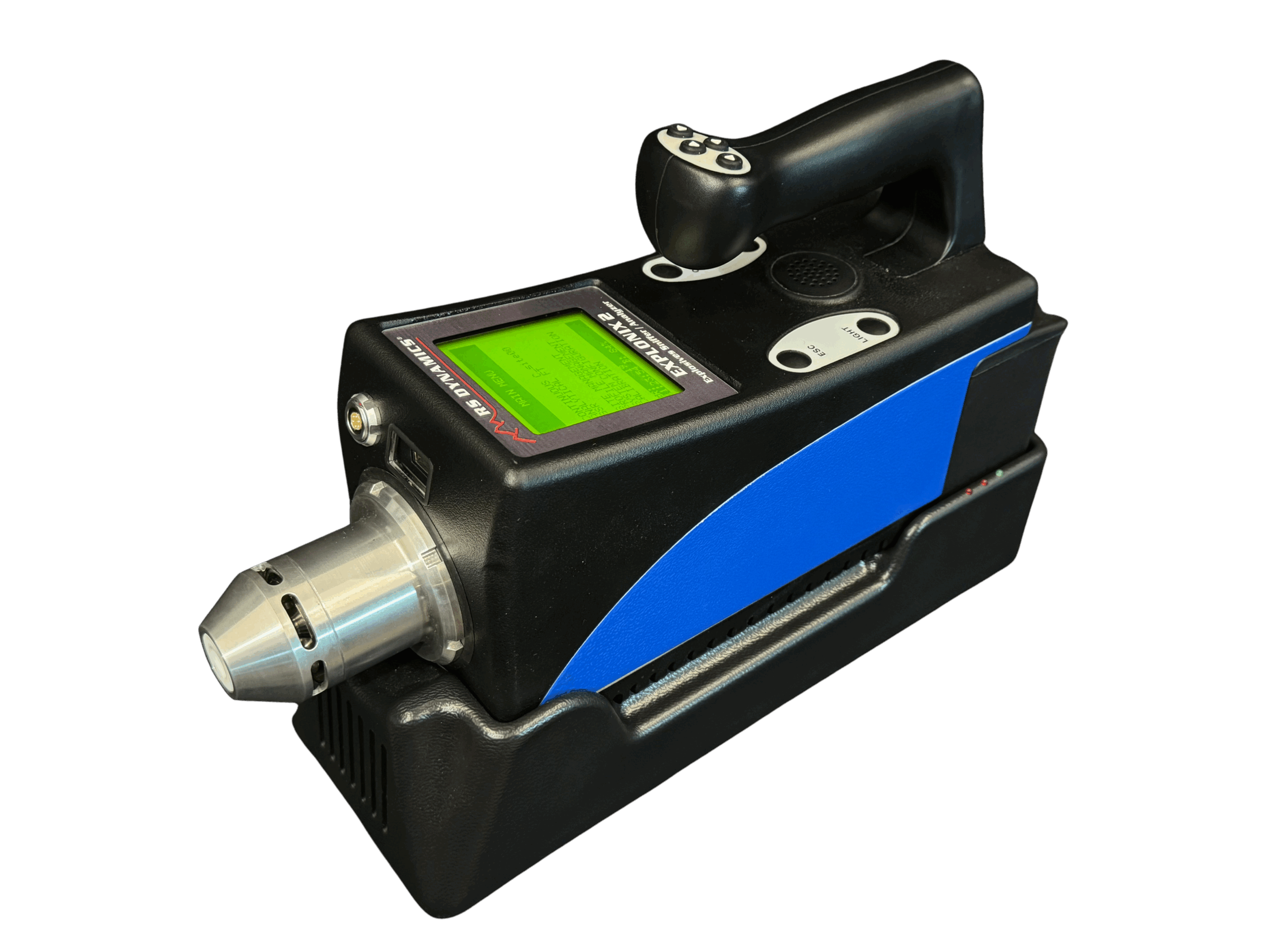

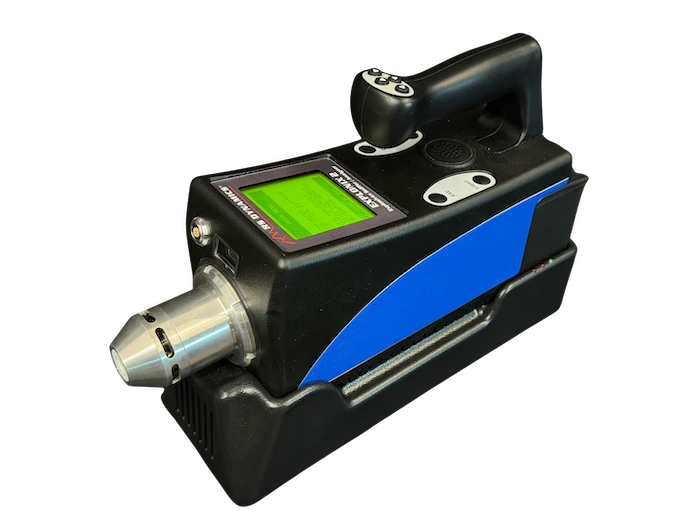

Be always charged

Battery last up to 4 hours of continuous run. Be ready for the whole day – use the first
battery while the other is charged in docking station. Or place the EXPLONIX itself into docking
station for stationary continuous run.

Specification

General overview

Detection principle

Infra Red Sampled Selective Luminiscence (IRSSIL), full-featured Gamma-Ray spectrometer (optional)

Sampling procedure

Particular sampling using paper strip or gilt needle, Vapour sampling directly sniffing vapours, GSR sampling directly sniffing gun shot residuas, Radionuclide radiation detection & identification

Sample type

Explosives traces or vapors, gun shot residuum, radioactive radiation (optional)

Detected items

All known explosives and plastics (PETN, RDX, HMX, ...), incl. TATP or "homemades", radionuclides (optional)

Operational modes

Analytical mode for identification, Cold mode for fast detection, Continuous mode for stationary use, Gun Shot Residuum mode and Radionuclide detection and identification mode (optional)

Control

User-friendly operation control via 4-button cross

Explosive & Gun Shot Residuum Section

Start-up time

Cold start typically under 1 minute ( no bake-out cycle needed )

Detection time

1 second for both vapour modes

Analytical time

Less than 30 seconds ( Particular mode )

False alarm rate

Excellent suppression of interfering compounds like parfumes, diesel exhaust or vapours, various odors, desolvents and other taggants

Cleaning cycle

typically 10 seconds

Radiological Section (optional)

Sensitivity ( static )

30 cps per MBq/m ( 137Cs )

Resolution

Better than 9% FWHM at energy 662 keV

Energy range

20 - 3 000 keV

Library

Identification library upgradable

PC application

Available with spectrogram graphic output and automatic background correction and calibration

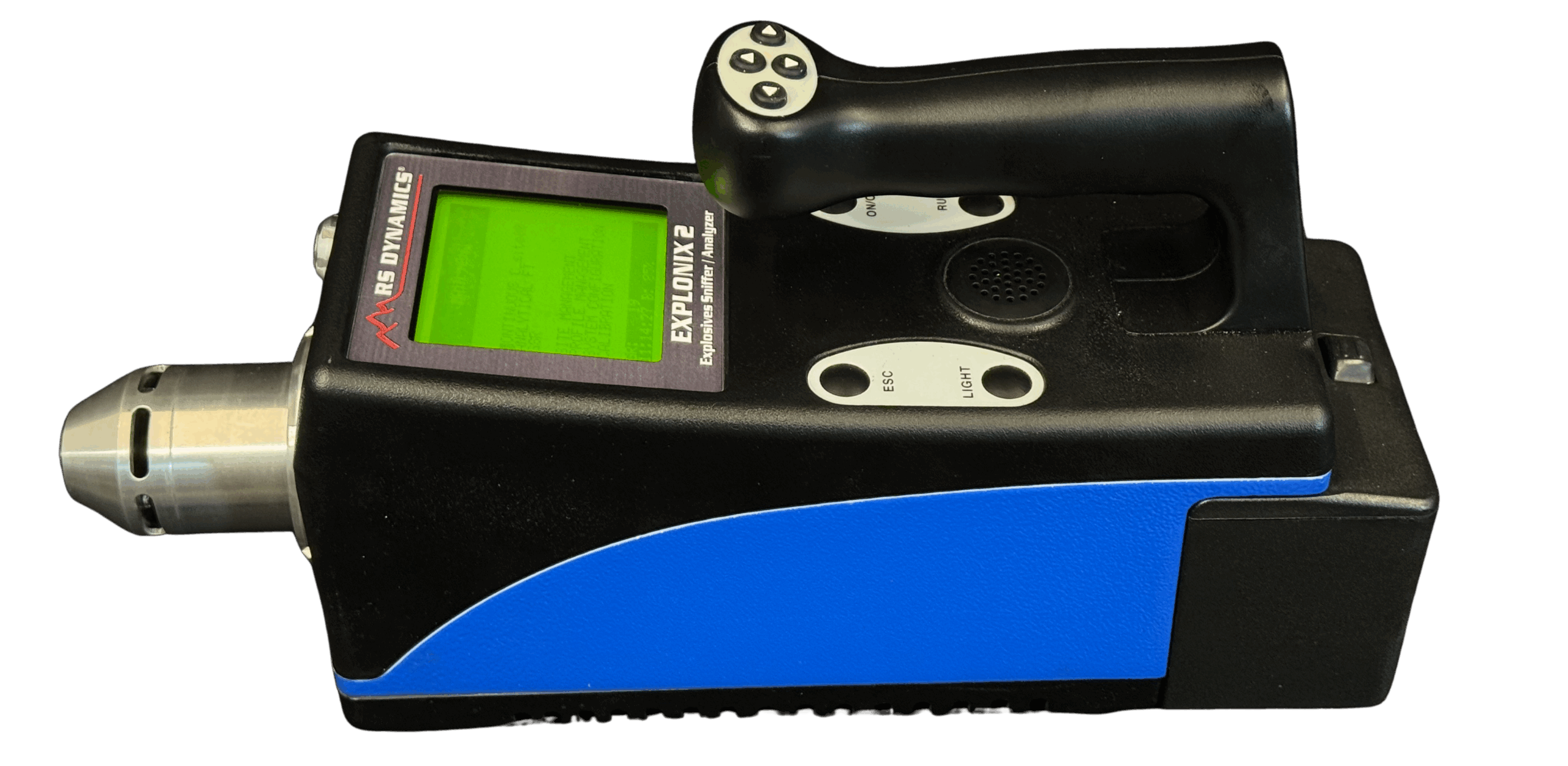

Features

System check

Automatic on start-up

Calibration

Automatic for all channels

Presets

Available from manufacturer for different tasks, user-configurable profiles available

Interface

Full-graphic display readable in daylight, sealed mechanical buttons operable in gloves, built-in BAR code reader

Alarm

acoustic and visual graphic

Connectivity

USB 2.0, RJ45 Ethernet ( direct connection to internet without user computer), Wi-Fi (optional)

User setting

Configurable from PC application

Remote Control

Available from PC application, support for robot application

Physical

Size

260 x 170 x 105 mm ( including handle )

Weight

3.2 kg without batteries, 3.9 including battery

Shipping weight

13kg ( including transport case, calibration kit, docking station, accessories )

Power Supply

Battery

21V Li-ion battery, up to 4 hours run ( Detection mode only )

Charging

100 - 240 VAC docking station for charging batteries or inserted EXPLONIX 2 supply included

Consumables

Detection cartridge

one enough for 6 000 - 10 000 scans

Sampling strips

3 packs included, 250 strips per pack

Sampling needle

3 included

Support

Training

No special operator's training or qualification needed

Factory check & calibration

Available through any internet connection

Environmental

Radioactive materials inside

None

Toxic materials inside

None (excluding Li-ion batteries and detection cartridges)

Recyclability

Fully at manufacturer side
