ECOPROBE 5

ECOPROBE 5 is the ultimate solution for soil contamination survey. It combines advantages of Photoionisation detection (PID) and Infra-red spectroscopy (IR). This device replaces a number of separate analysers with one small, compact instrument. It provides the user with the in-situ measurement of organic contaminants with selective analysis of methane, group of common petroleum hydrocarbons, CO2, O2, NO2 and H2S.
Product brochure
Request demo

Highlights

Simultaneous PID and IR measurement
Great sensitivity and selectivity
Various probes for various soil porosity
Outstanding reliability
User friendly operation

Get know the device

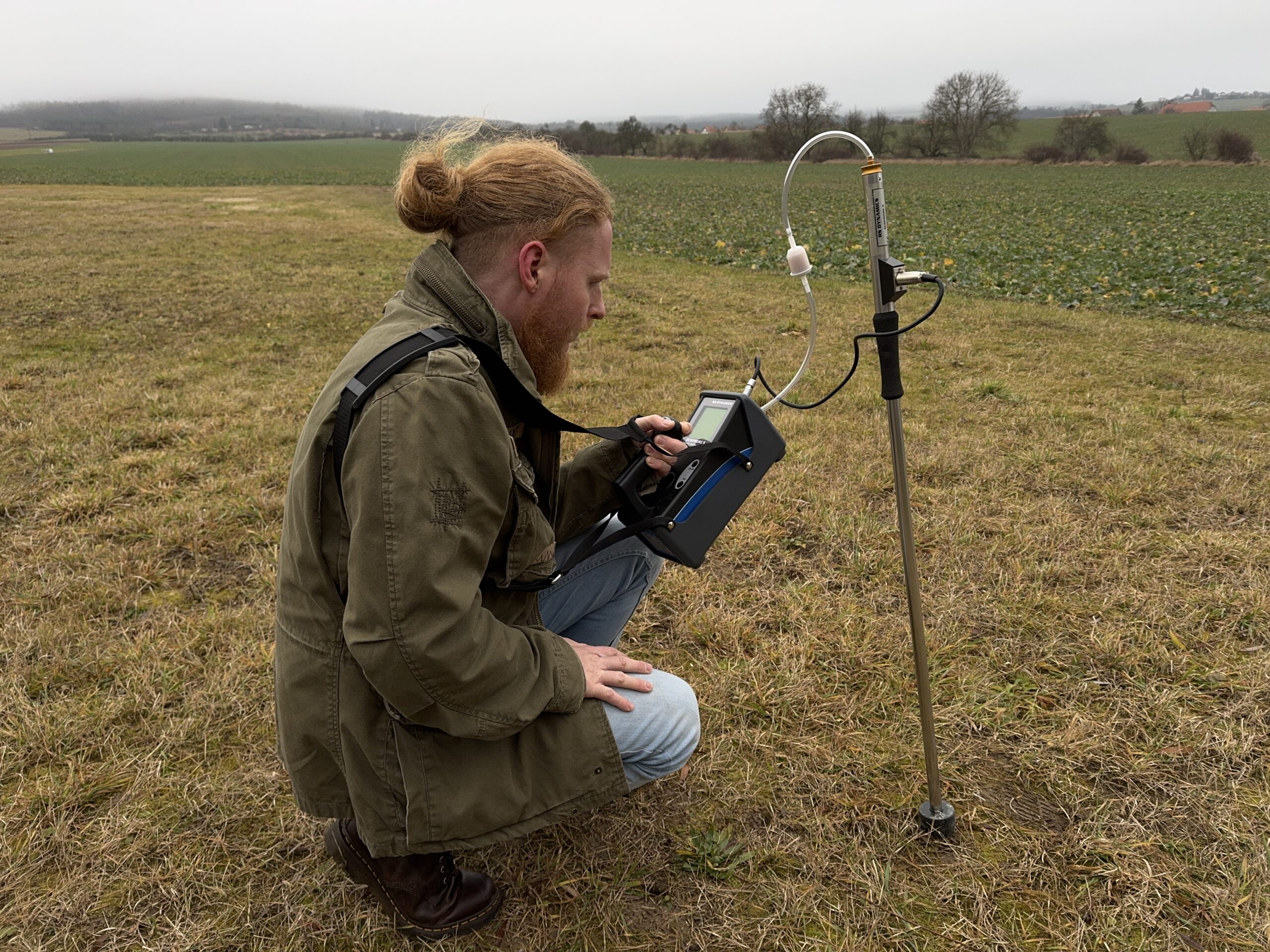

Discover what is hidden in the soil

The ECOPROBE 5 is ruggedized device specially designed for in-field use. With the ECOPROBE 5 you can achieve sub-ppm sensitivity. With separate methane-measurement channel, you are able to substract the response caused by natural biological processes in the soil.

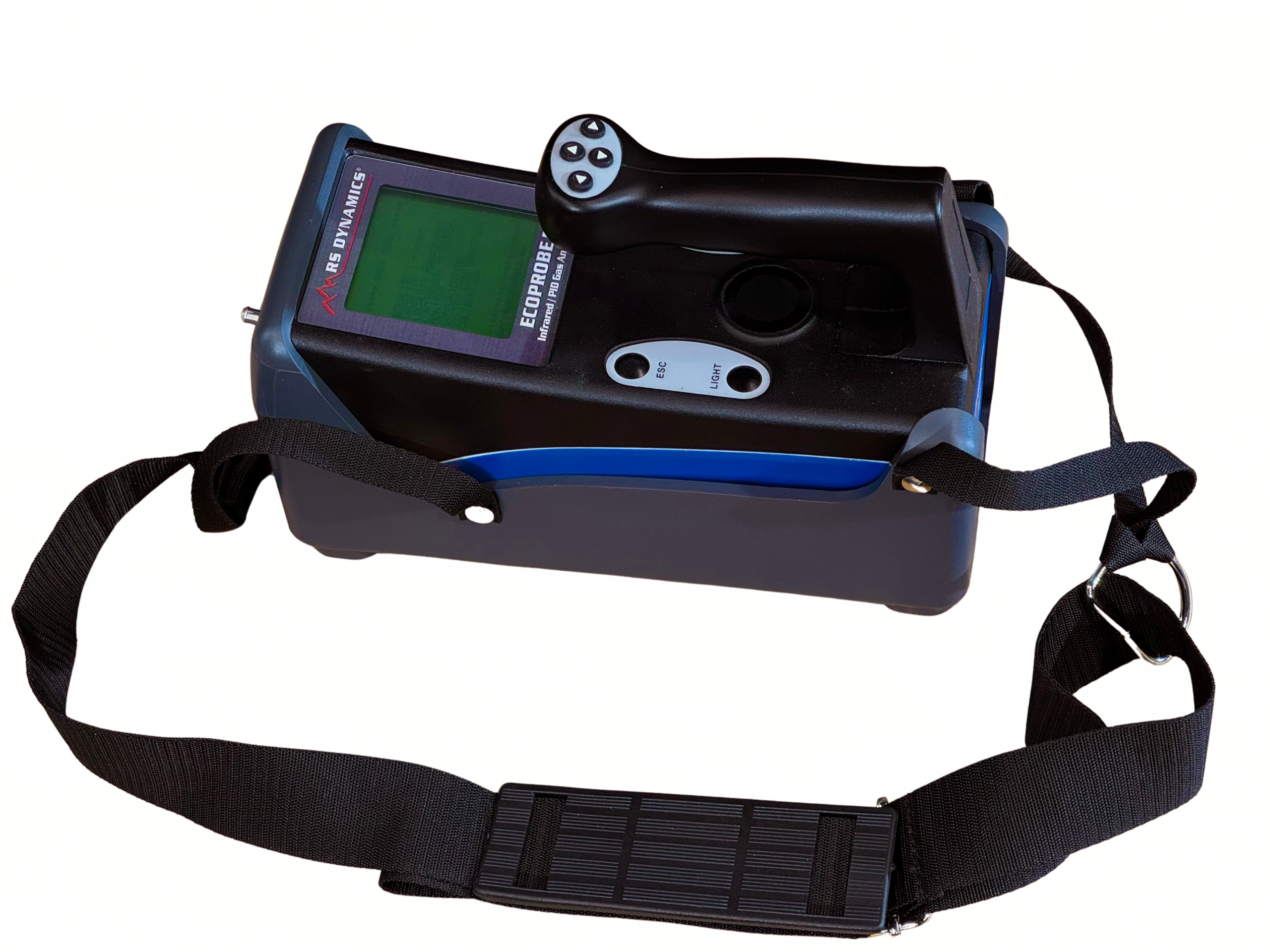

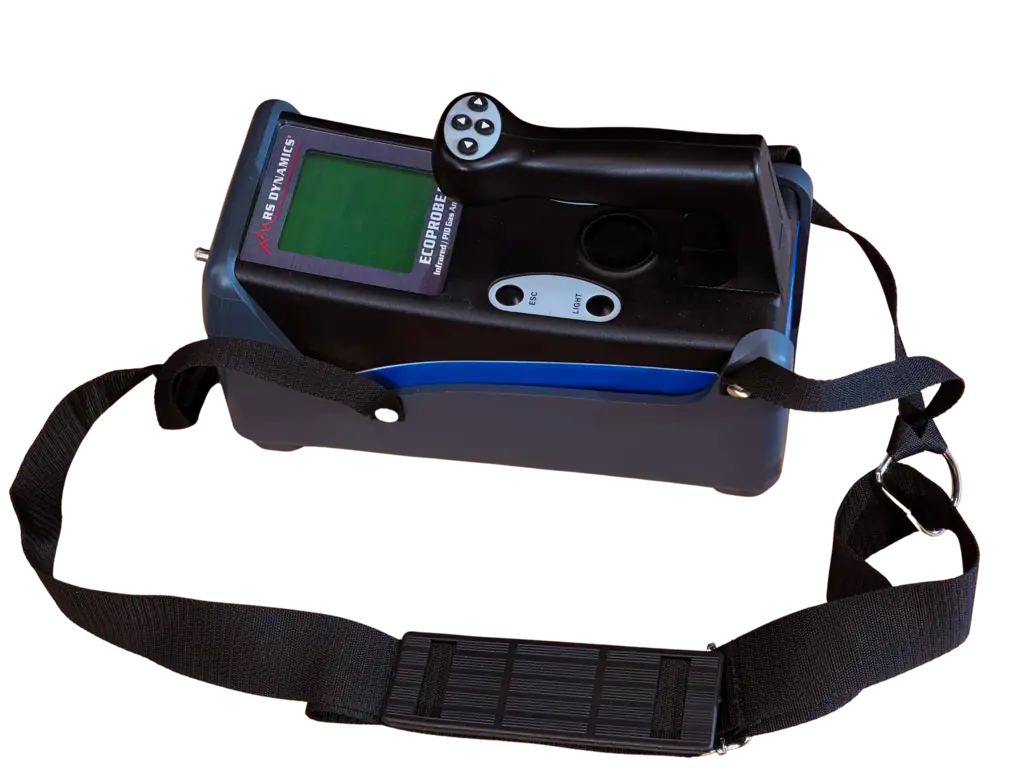

IMG_0858-removebg

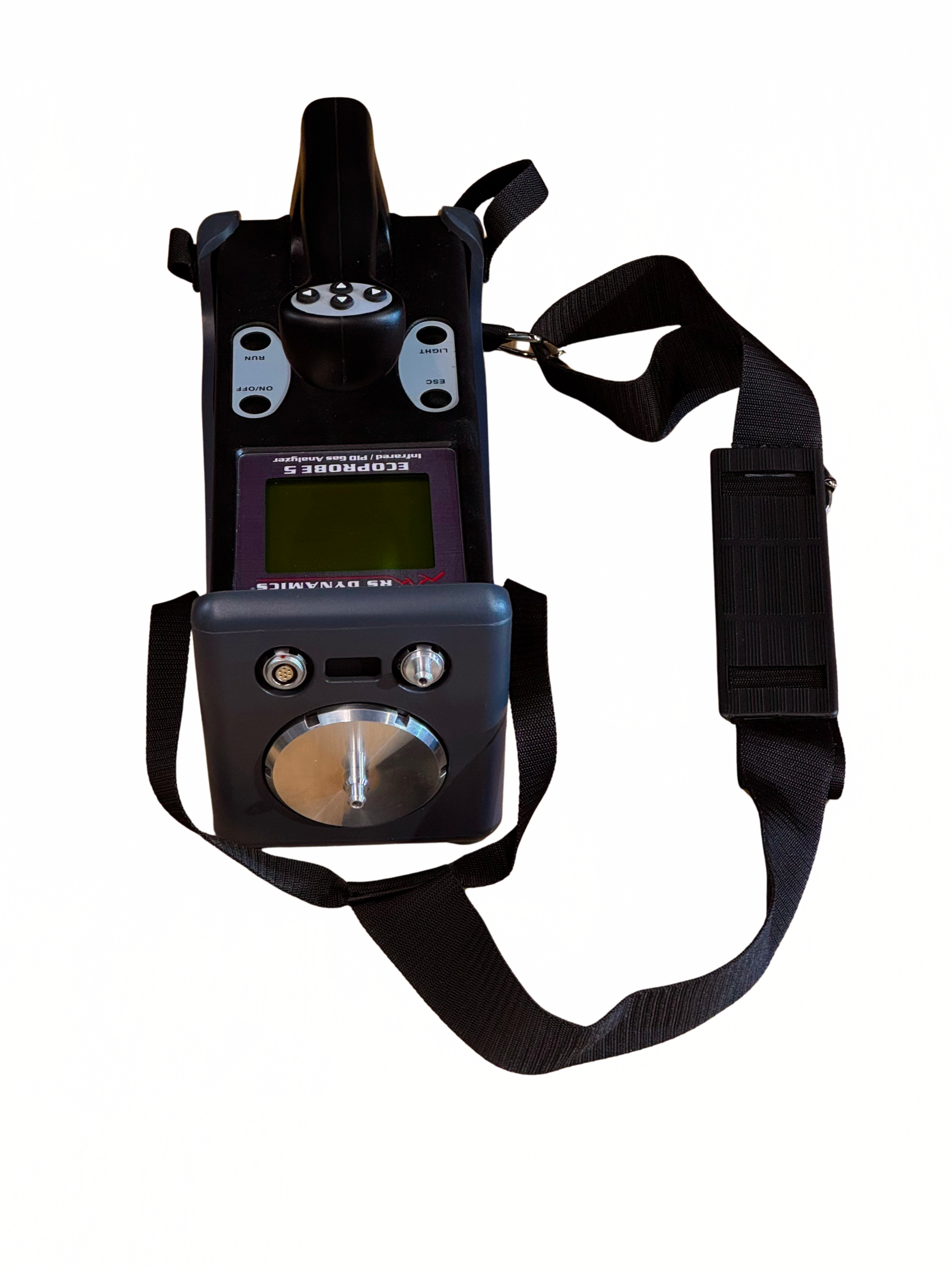

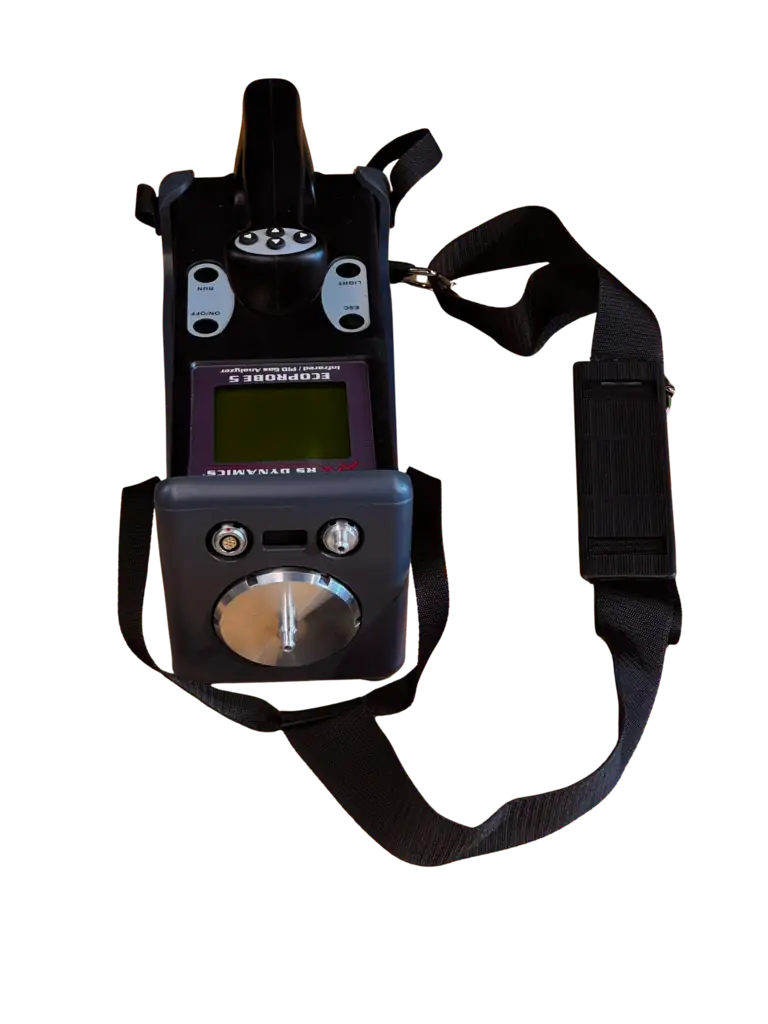

IMG_0869-removebg

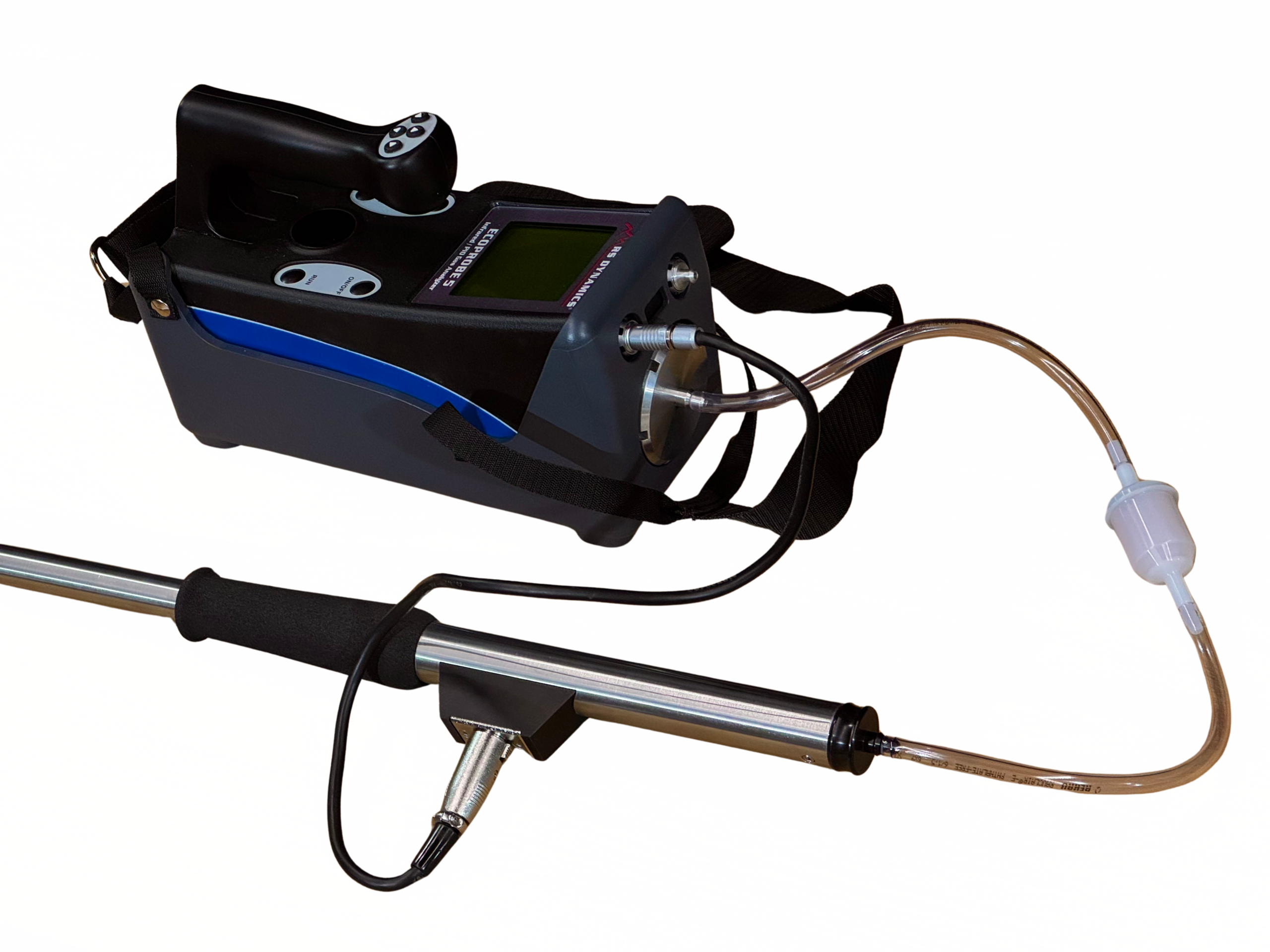

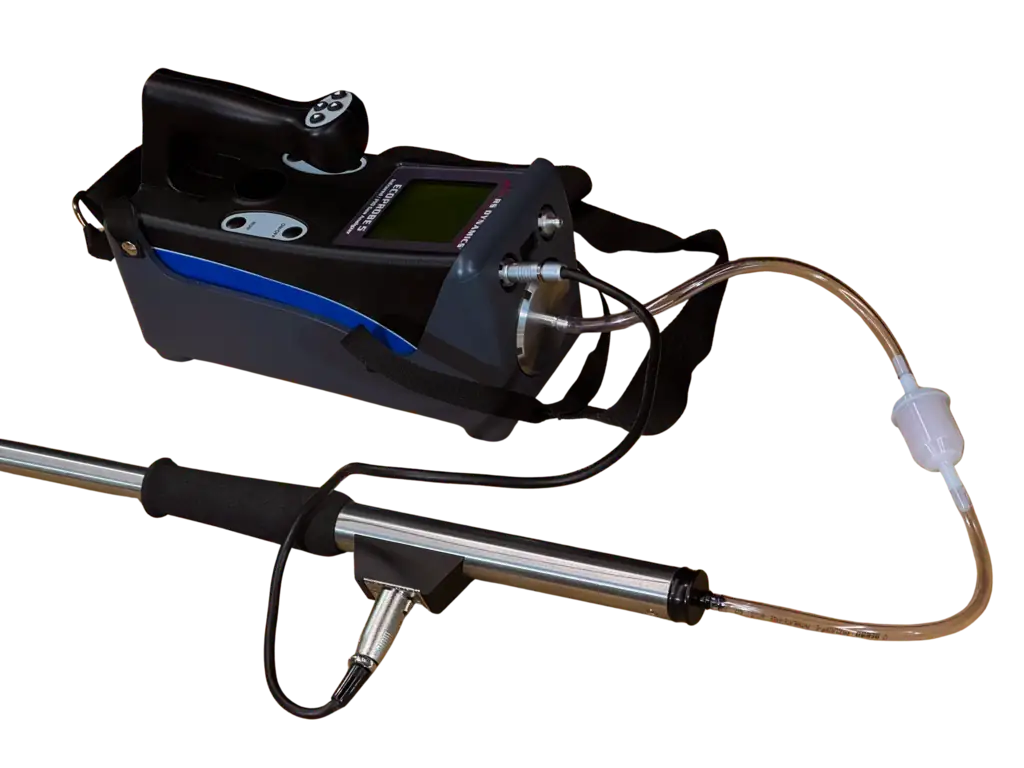

IMG_0910-removebg
View Tech "PID"
View Tech "IR"

Applications

Pipeline leakage tests

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.

Read more

Soil Contamination Security

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.

Read more

Simplify your workflow

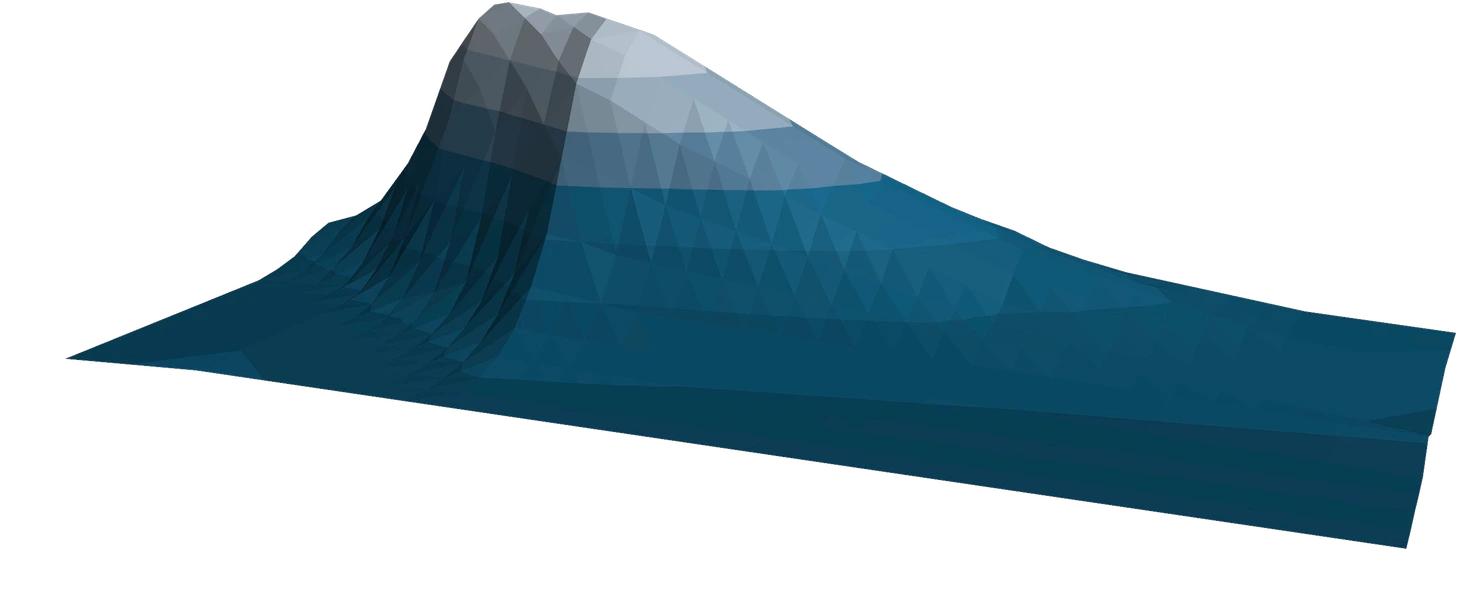

The ECOPROBE 5 is able to store up to 100 000 measurements. With GPS-module attached to the device, you can download your measurements into your PC in various data format. Create your own plot in then a simple task, exploring soil contamination.

Everything you need

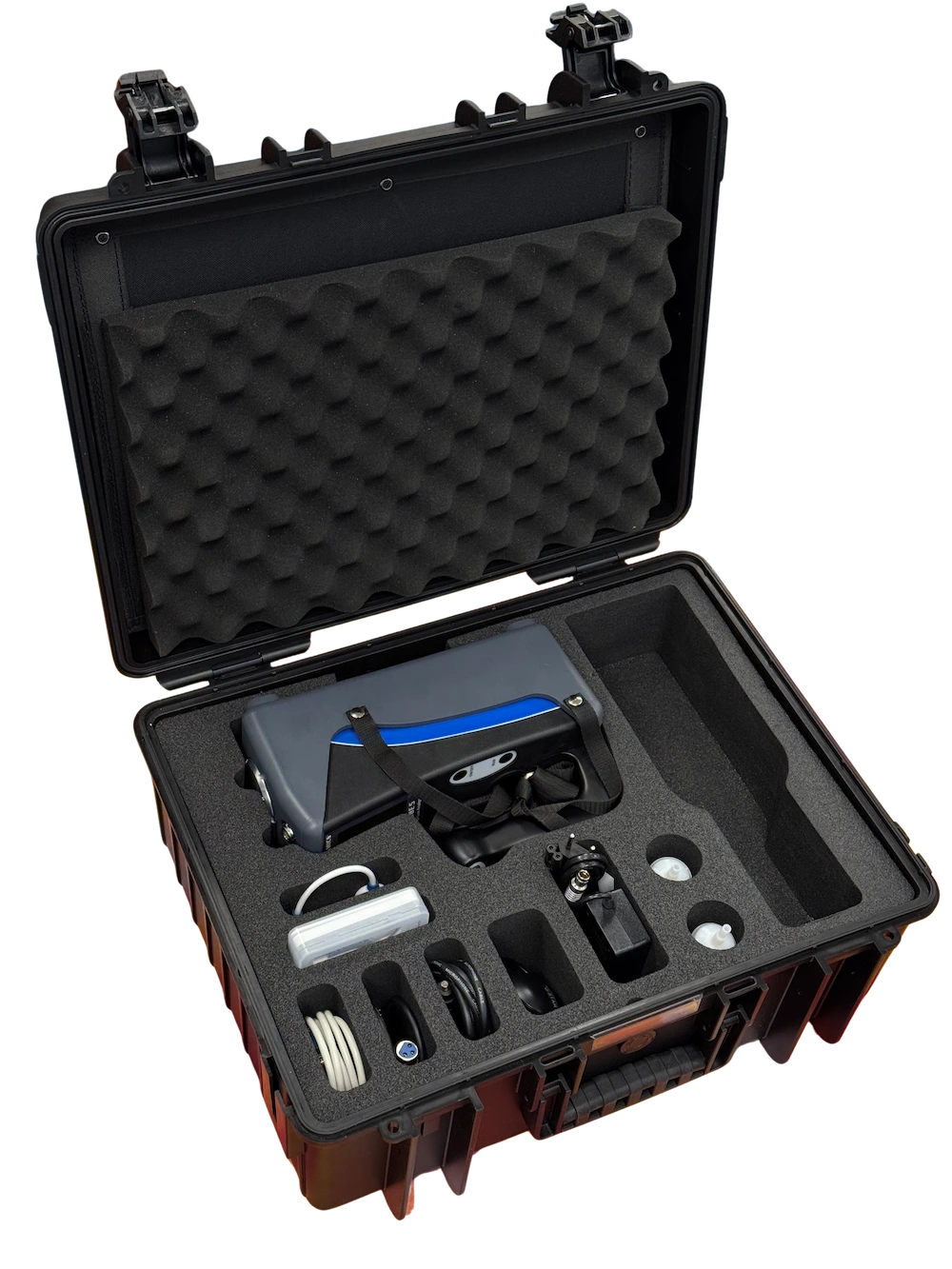

All the accessories you need are delivered in heavy duty sealed case. No matter if you need to connect the ECOPROBE 5 or calibrate it. Everything is at your hand.

Connect Without Limits

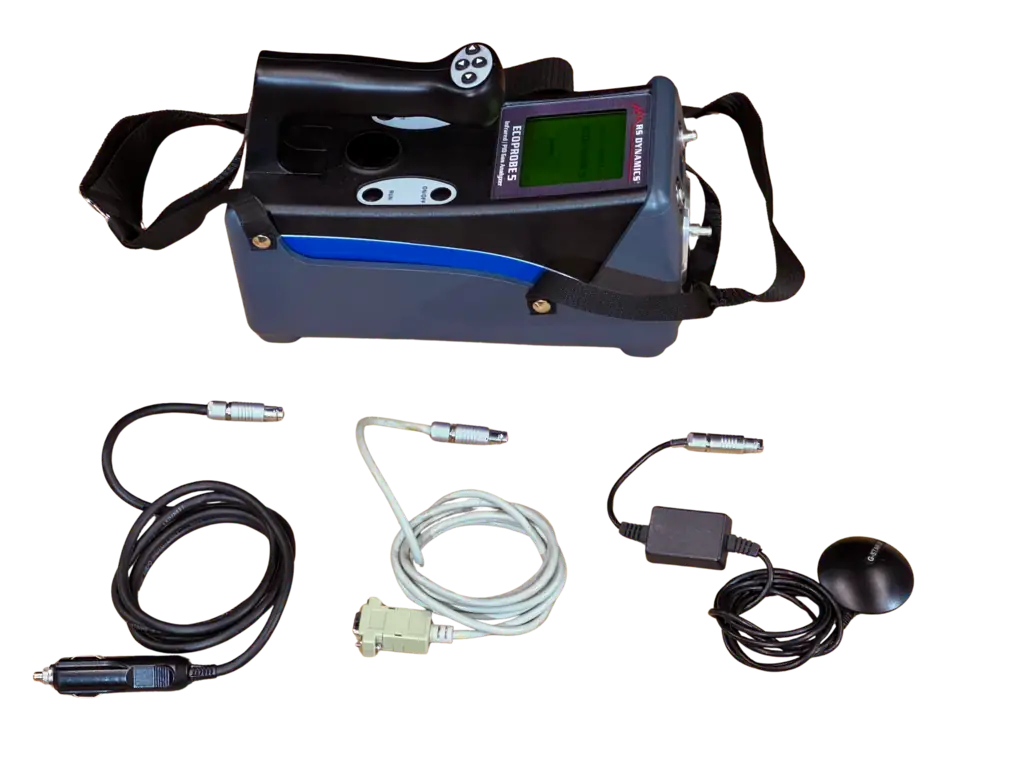

Thanks to proprietary connector, you are able to charge the device, attach the GPS-module, probe with thermometer or connect to the PC via included RS-232/USB convertor.

Specification

General overview

Detection principle

Photoioniosation detection ( PID ) and Infra-red spectroscopy ( IR )

Detected items

PID - volatile organic compound ( VOC, except of methane ) and toxic gases including chlorinated hydrocarbons, IR - methane, petroleum hydrocarbons, CO2, H2S ( optional ),N2O ( optional )

Operating

Handheld device with whole day internal battery endurance, autonomous remotely controlled monitoring station

Control

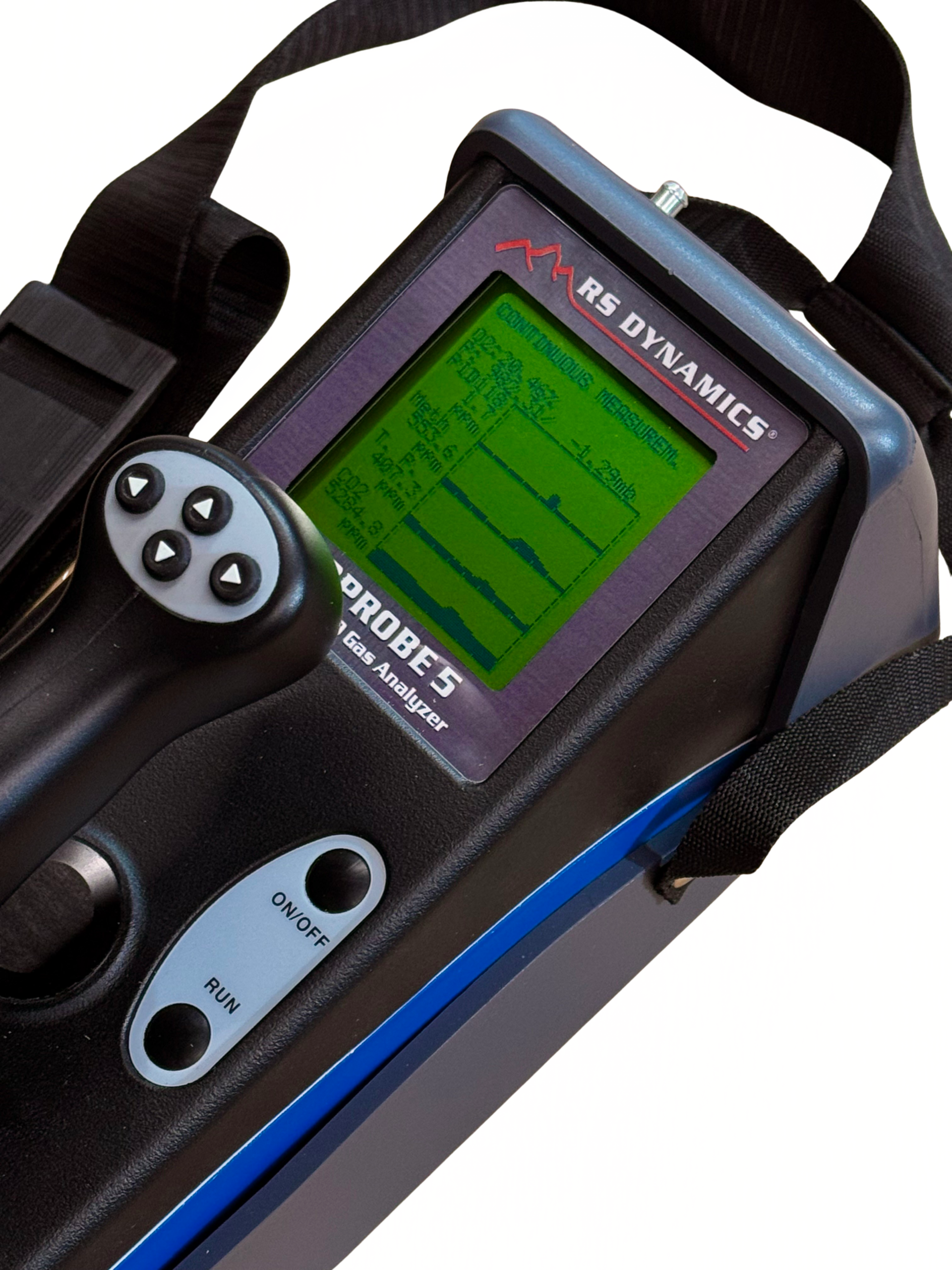

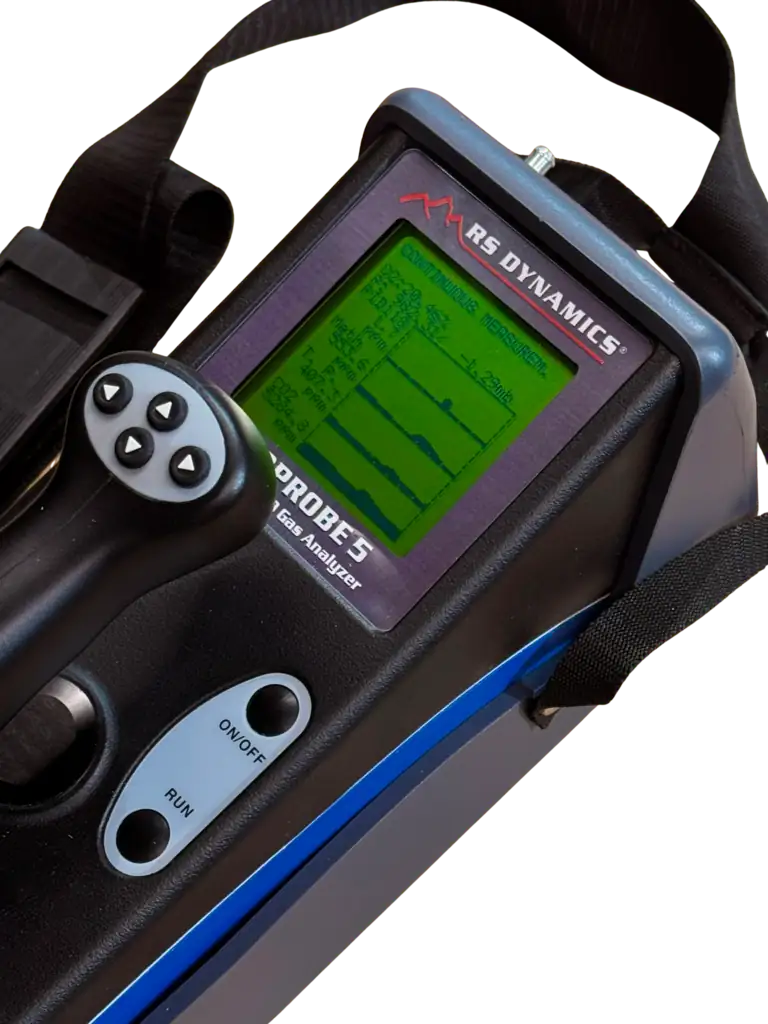

User-friendly operation control via 4-button cross

Photoionisation detection ( PID )

Detection limit

Two ranges - 0.1 ppm, 1 ppb ( Hi-sense mode )

Dynamic range

Up to 4000 ppm

Response time

0.08 s

Sampling rate

10 measurements per second

Zero stability

0.5 ppb ( using automatic zeroing procedure )

Ion lamp

10.6/10.2 eV ( 9.6 eV or 11.7 eV optional )

Infra-red spectroscopy ( IR )

Independent channels

Up to five - methane, petroleum hydrocarbons, CO2, H2S (optional), N2O (optional)

Detection limit

Methane - 200 ppm, petroleum hydrocarbons - 200 ppm, CO2 - 50 ppm

Dynamic range

Up to 500 000 ppm

Response time

0.5 s

Sampling rate

10 measurements per second

Other readings

Oxygen

0 - 100 %

Soil temperature

± 0.1 °C accuracy

Sampled gas temperature

± 0.1 °C accuracy

Ambient pressure

Accuracy 0.1%, resolution 0.01%

Physical

Size

260 x 170 x 105 mm ( including handle )

Weight

3.0 kg

Shipping weight

13kg ( including transport case, probes, calibration kit, accessories )

Power Supply

Battery

Internal rechargeable battery for whole day operation

Charging

100 - 240 VAC charger included

Connectivity

Cable connection

RS-232, converter to the USB 2.0 included

Wireless

Infrared interface

Support

Training

No special operator's training or qualification needed

Factory check & calibration

Available through any internet connection

Environmental

Radioactive materials inside

None

Toxic materials inside

None (excluding battery)

Recyclability

Fully at manufacturer side
